Intel HD630 won't boot

[IamPol]

Hello everyone,

I recently upgraded my pc and decided to update my hackintosh with the new catalina. However since then, it has been only a nightmare. My problem is that I can't manage to make the intel graphics work properly. I have tried many guides out there but they all end up with the same result: kernel panic or stuck at boot. I can boot into mac by injecting intel and applying a 0x12345678 fakeid and 0x59120000 as ig-platform-id but then I get many graphic bugs and the os does not feel smooth. My hardware is:

Asus ROG z390
Intel i5 9600k

I have an nvidia GPU too, which i use with ubuntu, but I dont have any cable connected to it and the bios is set for CPU graphics with 64MB preallocated DVMT.
What I have tried:

https://hackintosh.gitbook.io/-r-hackintosh-vanilla-desktop-guide/config.plist-per-hardware/coffee-lake
But i get the SMCSuperIO ssio: @ detected device Nuvoton NCT679BD which is supposed to be fixed by the RTC Bug patch in the config.plist

I have also tried removing that and using the original config.plist but then I get the buggy-slow graphics. Then I tried to set the igpu in the devices, but then I just get a black screen after boot.

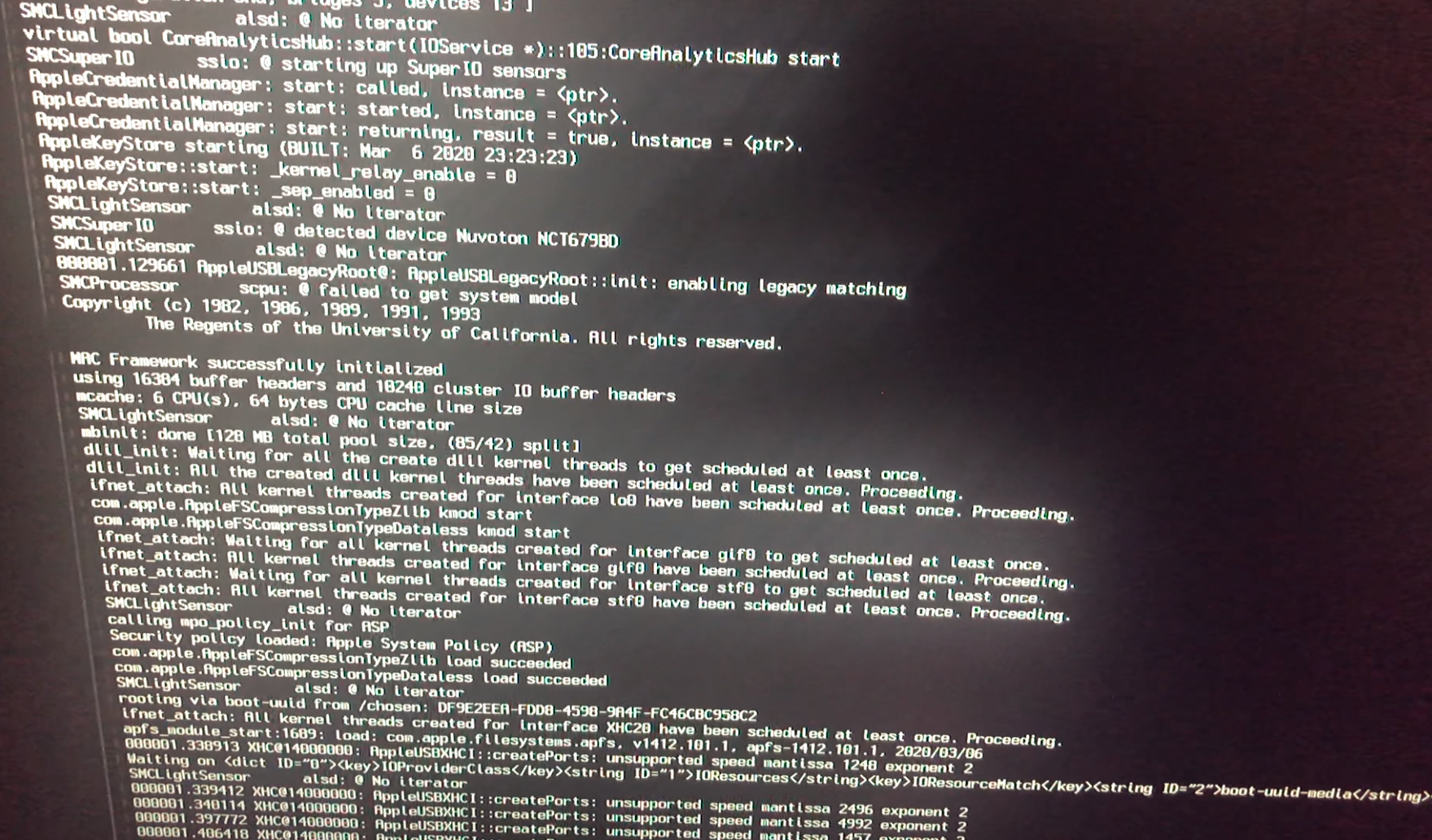

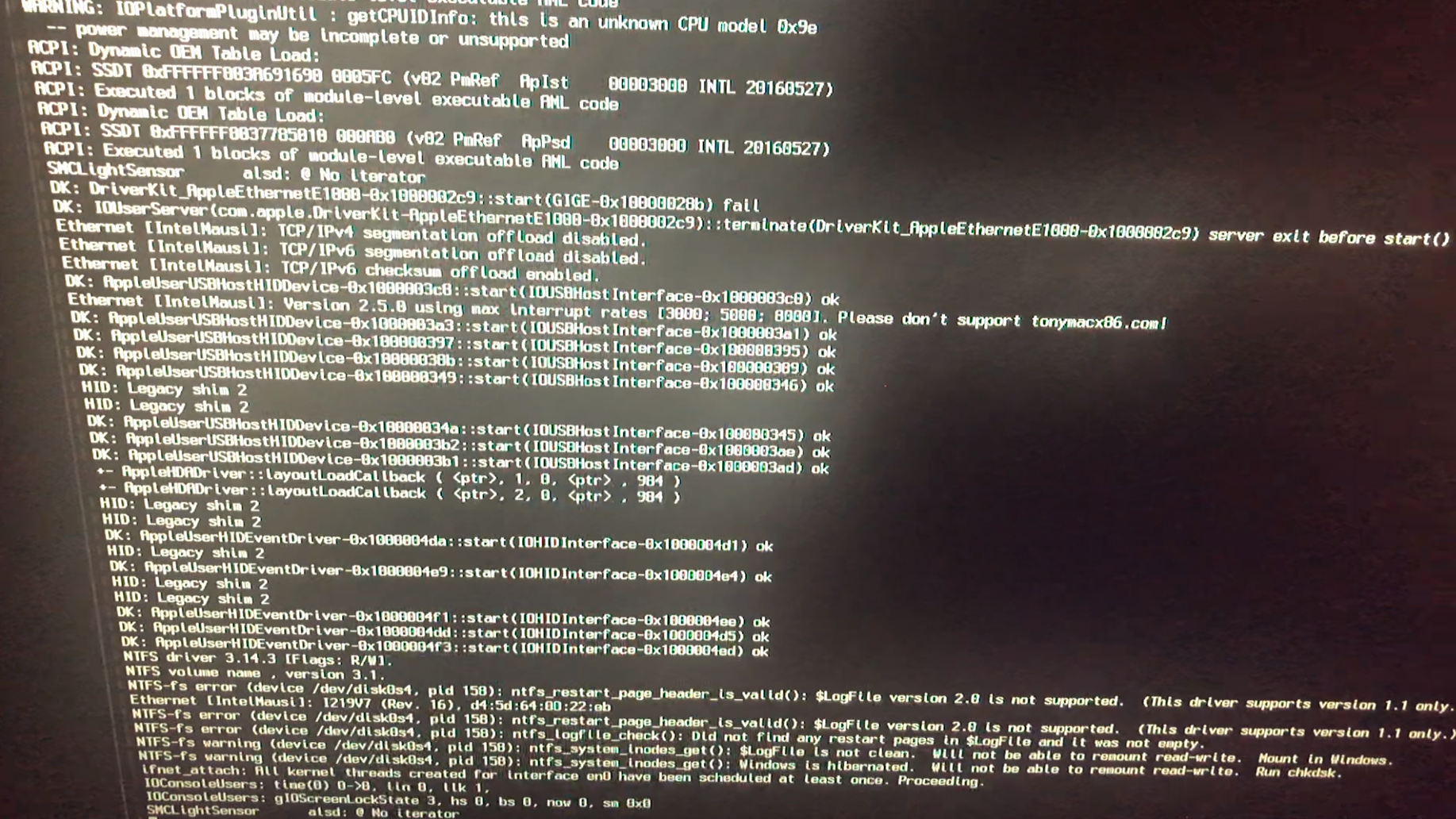

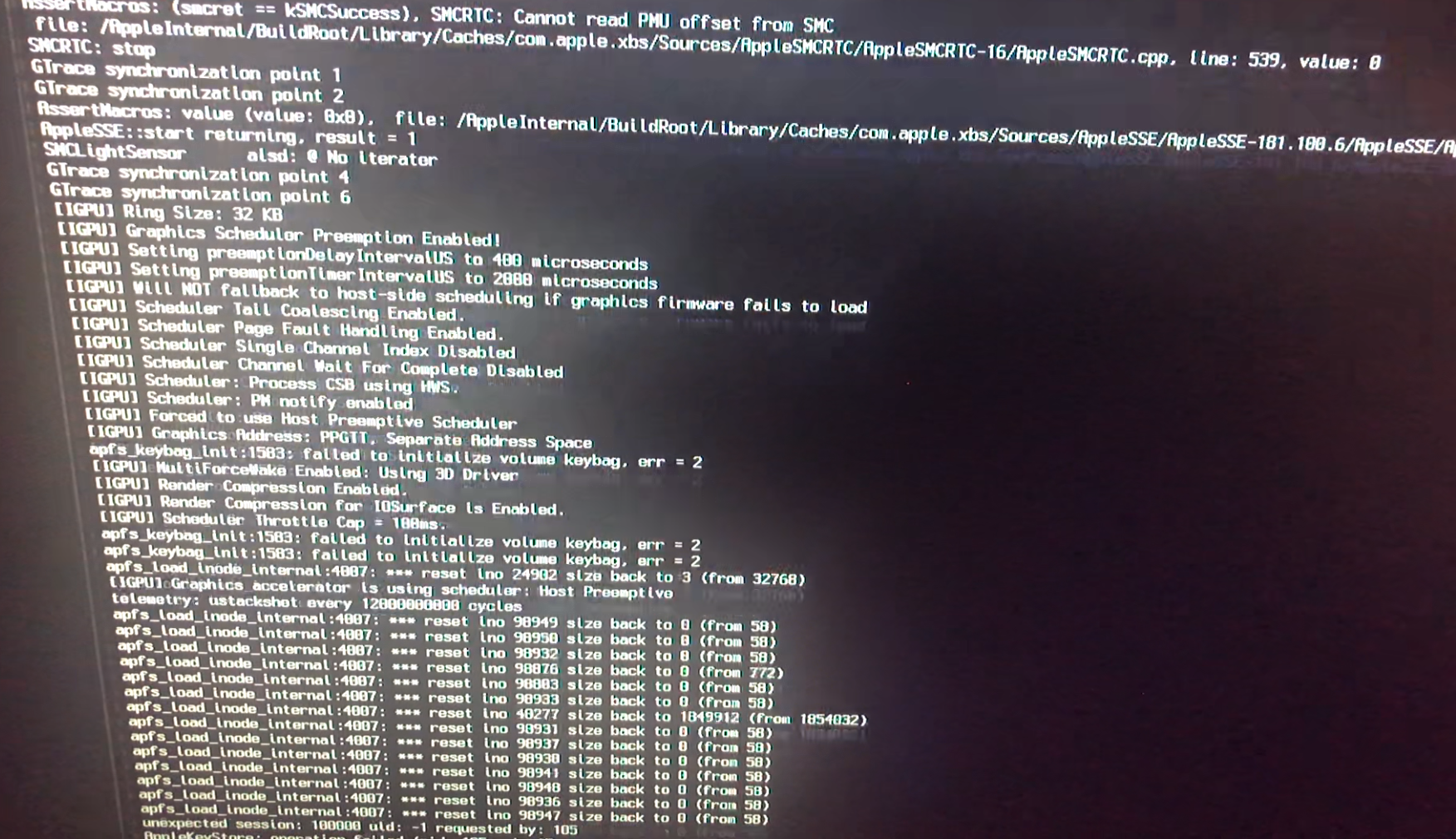

Here is my current config.plist and some screens of the black-screen boot.

can anyone help me?

C

config.zip

Edited May 15, 2020 by IamPol

[MaLd0n]

https://github.com/acidanthera/WhateverGreen/blob/master/Manual/FAQ.IntelHD.en.md
