Can't wake from keyboard or mouse

[rev4turbomonster]

Hi All,

Firstly thanks for all the help you have given me getting my system running. I am really happy to have my z390 i9 9900k working almost perfectly. Everything apart from a little quirk with sleep. The machine sleeps perfectly and has been left for 13 hours today and woke with no issue which is great. The small thing is that to wake it I have to press the power button on the case it won't wake from my magic keyboard or trackpad. I was wondering if anyone knew how to get this working.

Thanks for all your help again

Matt

[MaLd0n]

[ref]rev4turbomonster[/ref], the best to avoid problem is it, use power button for wake

[rev4turbomonster]

I was hoping for a better solution than that lol it used to work fine on my old z97 board must have used different chips I guess

[MaLd0n]

[ref]rev4turbomonster[/ref], i think ur device usb have a _prw for wake

[rev4turbomonster]

Not sure what you mean or how I make it do that

[MaLd0n]

[ref]rev4turbomonster[/ref], check inside XHC device, u see a _PRW

[rev4turbomonster]

Hi Maldon,

I searched my DSDT for XHC and saw lots of entries but when I searched for a_PRW there wasn't anything listed under that. Is this something I would need to add if so where should I put it please.

Thanks so much for your help

Matt

[MaLd0n]

[ref]rev4turbomonster[/ref],

[rev4turbomonster]

Sorry I have never edited anything like this before I don't want to mess it up is there a way I can copy and paste it in or would you mind altering it where needed if I posted the DSDT you made for me.

Thanks a lot

[zoe934]

Sorry I have never edited anything like this before I don't want to mess it up is there a way I can copy and paste it in or would you mind altering it where needed if I posted the DSDT you made for me.

Thanks a lot



Same, did you know how to fix it?

Added in 2 minutes 40 seconds:

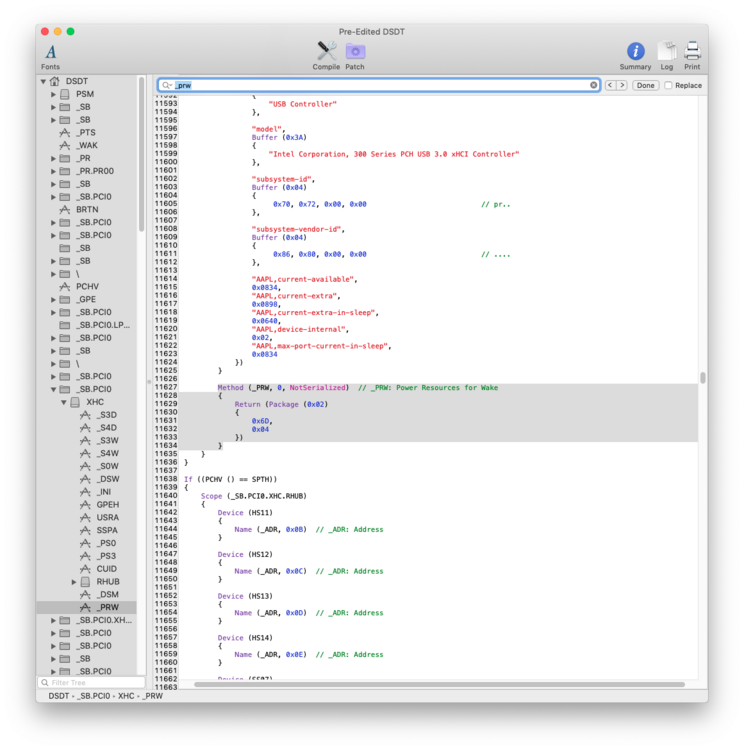

[ref]rev4turbomonster[/ref], Captura de Tela 2019-01-17 às 17.47.22.png



Hi MaLd0n,

Why mouse and keyboard wake up is not integrated in the DSDT that you patched for us?

Just wondering how does it work~

Thanks a lot for helping.

[MaLd0n]

[ref]zoe934[/ref], is a detail, i remove all, if u need just back a simple _prw

[zoe934]

[ref]zoe934[/ref], is a detail, i remove all, if u need just back a simple _prw



I found this

Method (PS2M._PRW, 0, NotSerialized) // _PRW: Power Resources for Wake

{

Return (GPRW (0x69, 0x04))

}

Method (PS2K._PRW, 0, NotSerialized) // _PRW: Power Resources for Wake

{

Return (GPRW (0x69, 0x04))

}

How do edit it so i can wake up through mouse and keyboard?

[MaLd0n]

[ref]zoe934[/ref], PS2M(mouse ps2) and PS2K(keyboard ps2), u use a ps2 device or usb?

[zoe934]

[ref]zoe934[/ref], PS2M(mouse ps2) and PS2K(keyboard ps2), u use a ps2 device or usb?



I use USB

[zoe934]

[ref]zoe934[/ref], PS2M(mouse ps2) and PS2K(keyboard ps2), u use a ps2 device or usb?



How do i modify DSDT for my USB?
