Help with patches for Asus ROG Srtix GL503vm-ed251t

[broadw3ll]

Hello friends I'm having some problems with my laptop I have allready a patch in dsdt made by MaLd0n & onemanosx but it only enables the trackpad basic functions. I have read here a guy that say he's trackpad settings start working with with acpibatterymanger kext but it didn't change nothing my battery status no gets show whit any patch that I have tried or kext. I have a Nvidia 1060, The acceleration its working... I have tried a bunch of patches made by onemanosx but the brightness isn't working, also the HDMI audio no works but the video its showed fine I read her (https://www.tonycrapx86.com/threads/hdmi-audio-gtx-1060-razer-blade.263379/) a guide with answers of rehabman it pretty similar to the change that I have to made in the brightness but its were im having problems lol.

Any help would be very appreciated

a lot of thanx to onemanosx for all the help

Send me Luiss-MacBook-Pro-2.zip

Edited December 26, 2018 by Guest

[onemanosx]

Lets settle one item at a time.

Check track pad - if same issue, change to voodooI2CHID

Send new ioreg

config.plist.zip

DSDT.aml.zip

[broadw3ll]

Im allready using Voodooi2chid... I try your patches but the track pad still isn't showing settings

[onemanosx]

settings will appear once you do you battery status. Upload ioreg with the new DSDT and config.plist, i need to see details

[broadw3ll]

im gonna attach my new ioreg

Luis’s MacBook Pro (2).zip

[onemanosx]

im gonna attach my new ioreg



Your USB 3.0 is now working with correct patch. From here, I still advise you to do your custom USB ports





Try this,

DSDT.aml.zip

config.plist.zip

And upload new ioreg

[broadw3ll]

Heres is my ioreg again... to make my custom USB ports I should make a custom ssdt ? thanx for all bro u rock

Luis’s MacBook Pro (2).zip

[onemanosx]

[ref]broadw3ll[/ref],

Check if you have brightness slider in System Preferences>Display.

You have 2 backlight injector kexts, use only one or test without. Experiment.

For your trackpad, go to dev site and post your issues. Include troubleshooting files as described HERE

or

You can try ApplePS2SmartTouchpad.kext

For USB you can do SSDT or follow HERE for quick solution.

For battery, follow this guide https://github.com/RehabMan/OS-X-ACPI-Battery-Driver. Solving this will make trackpad settings appear.

DSDT.aml.zip

[onemanosx]

[ref]broadw3ll[/ref],

check battery status - Batteryfix -DSDT.aml.zip

[broadw3ll]

Hi onemanosx im following your guide of youtube for the usb limits without problems... in the battery guide in my case I have to make a dsdt? cos only using the kext as is described didn't change anything... I'm also using the last dsdt that you posted here with the battery fix but it still not working.

I have removed the injectors of brightness from clover folder but u say that I have two, do you know were it is ? I don't remember installing that kext twice.

idk if its needed but im gonna attach my run me file againe.

As always thanx for everything im very glad with your help my friend

Send me Luiss-MacBook-Pro-2.zip

[onemanosx]

[ref]broadw3ll[/ref], OK. I will look into the code again when I am free.

Thanks for trying.

[broadw3ll]

I have already finished the patch for usb limits I decide to use uis_include (uia_include=HS01;HS02;HS03;HS04;HS06;HS07;HS08;SS01;SS02;SS03;SS04) now I'm gonna try to give a check to the battery guide thanx for the good explanation of your post

[onemanosx]

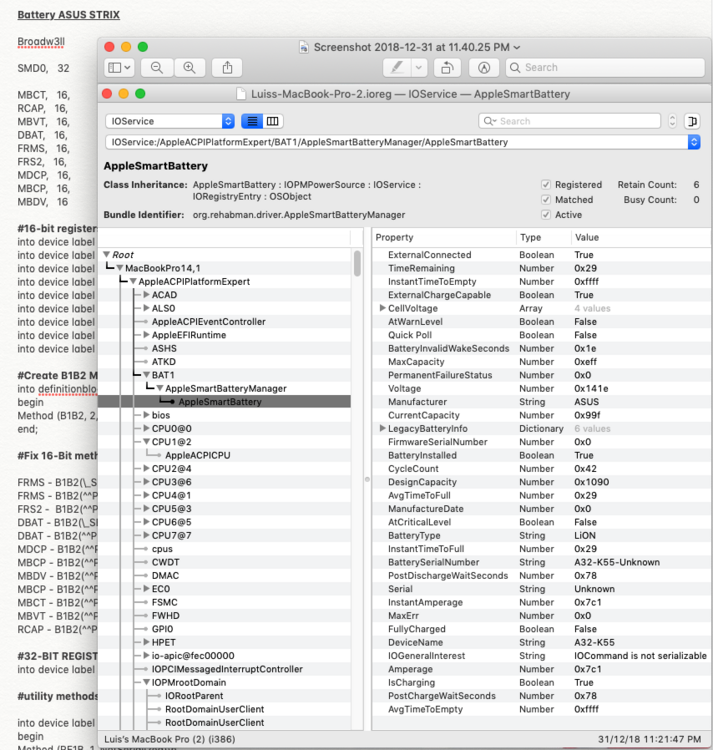

Successfully implemented battery status fix. But, I will not post the codes yet as [ref]broadw3ll[/ref] would like to learn the art of patching while I will guide along in this thread.



Edited December 31, 2018 by Guest

[onemanosx]

[ref]MaLd0n[/ref], any ways to lower CPU frequency for better battery life?

[MaLd0n]

[ref]onemanosx[/ref], CpuFriend

generate one SSDT with Pike Script and generate data with CpuFriend script, add in Pike Ssdt with _DSM

[onemanosx]

[ref]onemanosx[/ref], CpuFriend

generate one SSDT with Pike Script and generate data with CpuFriend script, add in Pike Ssdt with _DSM

Interesting. Never heard of this.. going to give it a try myself.

Thank you!

[broadw3ll]

in the brightness thing I have checked with detail the info and now the only thing that isn't working for me is this patch

--Scope (_SB)

{

Device (PNLF)

{

Name (_ADR, Zero) // _ADR: Address

Name (_HID, EisaId ("APP0002")) // _HID: Hardware ID

Name (_CID, "backlight") // _CID: Compatible ID

Name (_UID, 0x0A) // _UID: Unique ID

Name (_STA, 0x0B) // _STA: Status

}

}--

they suggested thad patch but when I try yo apply it just keep the Button in gray... I have found a pretty similar in the code in my code;

--Device (PNLF)

{

Name (_ADR, Zero) // _ADR: Address

Name (_HID, EisaId ("APP0002")) // _HID: Hardware ID

Name (_CID, "backlight") // _CID: Compatible ID

Name (_UID, 0x0A) // _UID: Unique ID

Name (_STA, 0x0B) // _STA: Status

Method (_DSM, 4, NotSerialized) // _DSM: Device-Specific Method

{

If (LEqual (Arg2, Zero))

{

Return (Buffer (One)

{

0x03

})

}--

do ia have to change anything about it ? I'm just using the kexrinjector in the clover folde, anything has changed

[broadw3ll]

I have also tried to enable the hdmi audio but when I run this command I got this error

its from this guide: https://github.com/toleda/audio_CloverHDMI/blob/master/audio_cloverHDMI-140.command.zip

[onemanosx]

[ref]broadw3ll[/ref], I think the bulk of the guides for hackintosh are based on intelHD graphics. Since, you are using one of those pascal graphics, you may need to look further than the regular guides.

I have no experience with such laptop like yours.

[broadw3ll]

in the brightness thing I have checked with detail the info and now the only thing that isn't working for me is this patch

--Scope (_SB)

{

Device (PNLF)

{

Name (_ADR, Zero) // _ADR: Address

Name (_HID, EisaId ("APP0002")) // _HID: Hardware ID

Name (_CID, "backlight") // _CID: Compatible ID

Name (_UID, 0x0A) // _UID: Unique ID

Name (_STA, 0x0B) // _STA: Status

}

}--

they suggested thad patch but when I try yo apply it just keep the Button in gray... I have found a pretty similar in the code in my code;

--Device (PNLF)

{

Name (_ADR, Zero) // _ADR: Address

Name (_HID, EisaId ("APP0002")) // _HID: Hardware ID

Name (_CID, "backlight") // _CID: Compatible ID

Name (_UID, 0x0A) // _UID: Unique ID

Name (_STA, 0x0B) // _STA: Status

Method (_DSM, 4, NotSerialized) // _DSM: Device-Specific Method

{

If (LEqual (Arg2, Zero))

{

Return (Buffer (One)

{

0x03

})

}--

do ia have to change anything about it ? I'm just using the kexrinjector in the clover folde, anything has changed



This one is for only Nvidia GTX it made by a guy with a gl702

(https://www.insanelymac.com/forum/topic/323010-please-help-me-fix-brightness-control-nvidia-graphics-only-laptop/)

[onemanosx]

the pnlf method is already in your dsdt

[broadw3ll]

Thats what I think... idk where is the problem now. in other things was able to work the card reader with this kext in the Clovers folder

Sinetek-rtsx.kext.zip

[onemanosx]

[ref]broadw3ll[/ref], cool that your card reader is working! Congrats!

[broadw3ll]

Yes!!! Bro but I'm still facing problems with the Nvidia buildin panel brightness, also I have discovered by searching and trying than the HDMI audio isn't supported, only it's supported with DP.

So I if you know anything or suggest about the brightness I would be glad if heard it

[onemanosx]
