hp compaq 8100 HP Compaq Elite 8100 cmt - Intel Core i7-870 Lynnfield - nVIDIA NVS 300 - Quest for install High Sierra

[Santiago Rodríguez]

Good afternoon, I present new user of the web. I have installed Macos in other 2 non-Apple computers, following the guides of other users. Now I have problems with the following: HP Compaq Elite 8100 CMT - Intel Core i7-870 Lynnfield - NVIDIA NVS 300 - Questing for Install High Sierra.



There are my specs taked from linux:

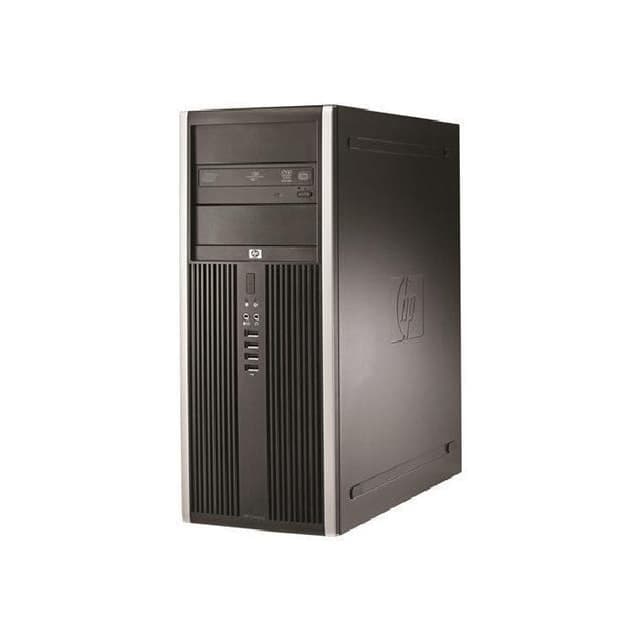

HP COMPAQ ELITE 8100 CMT Minitower
Intel(R) Core(TM) i7 CPU 870

Chipset Intel Q57 Express supporting Intel Core processor with vPro technology

LGA1156 ZIF (Socket T) (Other fonts says Socket H)
Specs from linux.



********************************
********************************
CPU INFO
********************************
********************************
# grep -i "model name" /proc/cpuinfo
model name	: Intel(R) Core(TM) i7 CPU         870  @ 2.93GHz
model name	: Intel(R) Core(TM) i7 CPU         870  @ 2.93GHz
model name	: Intel(R) Core(TM) i7 CPU         870  @ 2.93GHz
model name	: Intel(R) Core(TM) i7 CPU         870  @ 2.93GHz
model name	: Intel(R) Core(TM) i7 CPU         870  @ 2.93GHz
model name	: Intel(R) Core(TM) i7 CPU         870  @ 2.93GHz
model name	: Intel(R) Core(TM) i7 CPU         870  @ 2.93GHz
model name	: Intel(R) Core(TM) i7 CPU         870  @ 2.93GHz


*********************************
*********************************
GPU MODEL
*********************************
*********************************
# lspci | grep -i --color "vga\|3d\|2d"
01:00.0 VGA compatible controller: NVIDIA Corporation GT218 [NVS 300] (rev a2)


*********************************
*********************************
CHIPSET MODEL
*********************************
*********************************
# dmidecode -t baseboard
# dmidecode 3.3
Getting SMBIOS data from sysfs.
SMBIOS 2.6 present.

Handle 0x0003, DMI type 2, 14 bytes
Base Board Information
	Manufacturer: Hewlett-Packard
	Product Name: 304Bh
	Version: Not Specified

	Features:
		Board is a hosting board
		Board is removable
		Board is replaceable
	Location In Chassis: Not Specified
	Chassis Handle: 0x0004
	Type: Motherboard


********************************
********************************
KEYBOARD, CONNECTED DEVICES, ETC.
********************************
********************************
# dmesg | grep -i input
[    1.365170] input: Power Button as /devices/LNXSYSTM:00/LNXSYBUS:00/PNP0C0C:00/input/input2
[    1.401481] input: Power Button as /devices/LNXSYSTM:00/LNXPWRBN:00/input/input4
[    2.282816] input: Chicony Chicony wired mouse as /devices/pci0000:00/0000:00:1a.0/usb1/1-1/1-1.1/1-1.1:1.0/0003:04F2:0718.0001/input/input5
[    2.282903] hid-generic 0003:04F2:0718.0001: input,hidraw0: USB HID v1.11 Mouse [Chicony Chicony wired mouse] on usb-0000:00:1a.0-1.1/input0
[    2.469231] input: Lite-On Technology Corp. USB Multimedia Keyboard as /devices/pci0000:00/0000:00:1a.0/usb1/1-1/1-1.4/1-1.4:1.0/0003:04CA:002F.0002/input/input6
[    2.528319] hid-generic 0003:04CA:002F.0002: input,hidraw1: USB HID v1.10 Keyboard [Lite-On Technology Corp. USB Multimedia Keyboard] on usb-0000:00:1a.0-1.4/input0
[    2.534116] input: Lite-On Technology Corp. USB Multimedia Keyboard System Control as /devices/pci0000:00/0000:00:1a.0/usb1/1-1/1-1.4/1-1.4:1.1/0003:04CA:002F.0003/input/input7
[    2.596142] input: Lite-On Technology Corp. USB Multimedia Keyboard Consumer Control as /devices/pci0000:00/0000:00:1a.0/usb1/1-1/1-1.4/1-1.4:1.1/0003:04CA:002F.0003/input/input8
[    2.596168] input: Lite-On Technology Corp. USB Multimedia Keyboard as /devices/pci0000:00/0000:00:1a.0/usb1/1-1/1-1.4/1-1.4:1.1/0003:04CA:002F.0003/input/input9
[    2.596363] hid-generic 0003:04CA:002F.0003: input,hiddev0,hidraw2: USB HID v1.10 Device [Lite-On Technology Corp. USB Multimedia Keyboard] on usb-0000:00:1a.0-1.4/input1
[    8.108348] input: PC Speaker as /devices/platform/pcspkr/input/input10
[    8.245381] input: HP WMI hotkeys as /devices/virtual/input/input11
[    9.747689] input: HDA NVidia HDMI/DP,pcm=3 as /devices/pci0000:00/0000:00:03.0/0000:01:00.1/sound/card1/input12
[    9.747770] input: HDA NVidia HDMI/DP,pcm=7 as /devices/pci0000:00/0000:00:03.0/0000:01:00.1/sound/card1/input13
[    9.747857] input: HDA NVidia HDMI/DP,pcm=8 as /devices/pci0000:00/0000:00:03.0/0000:01:00.1/sound/card1/input14
[    9.747962] input: HDA NVidia HDMI/DP,pcm=9 as /devices/pci0000:00/0000:00:03.0/0000:01:00.1/sound/card1/input15
[    9.910745] snd_hda_codec_realtek hdaudioC0D0:    inputs:
[    9.927241] input: HDA Intel MID Mic as /devices/pci0000:00/0000:00:1b.0/sound/card0/input16
[    9.927311] input: HDA Intel MID Line as /devices/pci0000:00/0000:00:1b.0/sound/card0/input17
[    9.927372] input: HDA Intel MID Line Out as /devices/pci0000:00/0000:00:1b.0/sound/card0/input18
[    9.927433] input: HDA Intel MID Front Headphone as /devices/pci0000:00/0000:00:1b.0/sound/card0/input19




**************************************
**************************************
AUDIO CODEC
**************************************
**************************************
# aplay -l
**** List of PLAYBACK Hardware Devices ****
card 0: MID [HDA Intel MID], device 0: ALC662 rev1 Analog [ALC662 rev1 Analog]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 1: NVidia [HDA NVidia], device 3: HDMI 0 [HDMI 0]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 1: NVidia [HDA NVidia], device 7: HDMI 0 [HDMI 0]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 1: NVidia [HDA NVidia], device 8: HDMI 0 [HDMI 0]
  Subdevices: 1/1
  Subdevice #0: subdevice #0
card 1: NVidia [HDA NVidia], device 9: HDMI 0 [HDMI 0]
  Subdevices: 1/1
  Subdevice #0: subdevice #0



**********************************
**********************************
NETWORK CONTROLLER
**********************************
**********************************
# lspci | grep -i network
00:19.0 Ethernet controller: Intel Corporation 82578DM Gigabit Network Connection (rev 05)
24:00.0 Network controller: Qualcomm Atheros AR93xx Wireless Network Adapter (rev 01)

***

# lshw -class network
  *-network
       description: Ethernet interface
       product: 82578DM Gigabit Network Connection
       vendor: Intel Corporation
       physical id: 19
       bus info: pci@0000:00:19.0
       logical name: enp0s25
       version: 05
       serial: 64:31:50:1e:55:dd
       capacity: 1Gbit/s
       width: 32 bits
       clock: 33MHz
       capabilities: pm msi bus_master cap_list ethernet physical tp 10bt 10bt-fd 100bt 100bt-fd 1000bt-fd autonegotiation
       configuration: autonegotiation=on broadcast=yes driver=e1000e driverversion=5.10.0-9-amd64 firmware=0.12-2 latency=0 link=no multicast=yes port=twisted pair
       resources: irq:30 memory:f2d00000-f2d1ffff memory:f2d25000-f2d25fff ioport:2100(size=32)
  *-network
       description: Wireless interface
       product: AR93xx Wireless Network Adapter
       vendor: Qualcomm Atheros
       physical id: 0
       bus info: pci@0000:24:00.0
       logical name: wlp36s0
       version: 01
       serial: 20:7c:8f:95:f4:f6
       width: 64 bits
       clock: 33MHz
       capabilities: pm msi pciexpress bus_master cap_list rom ethernet physical wireless
       configuration: broadcast=yes driver=ath9k driverversion=5.10.0-9-amd64 firmware=N/A ip=192.168.1.130 latency=0 link=yes multicast=yes wireless=IEEE 802.11
       resources: irq:16 memory:f2e00000-f2e1ffff memory:f2e20000-f2e2ffff
          (((((( No problem with this model I can use othe one Intel with itlwm as possible.))))

**********************************
**********************************
DRIVE MODEL
**********************************
**********************************
# lshw -class disk -class storage
  *-sata
       description: SATA controller
       product: 5 Series/3400 Series Chipset 6 port SATA AHCI Controller
       vendor: Intel Corporation
       physical id: 1f.2
       bus info: pci@0000:00:1f.2
       logical name: scsi0
       logical name: scsi1
       version: 05
       width: 32 bits
       clock: 66MHz
       capabilities: sata msi pm ahci_1.0 bus_master cap_list emulated
       configuration: driver=ahci latency=0
       resources: irq:31 ioport:2188(size=8) ioport:21a0(size=4) ioport:2190(size=8) ioport:21a4(size=4) ioport:2120(size=32) memory:f2d26000-f2d267ff
     *-disk
          description: ATA Disk
          product: WDC WD2500AAKX-6
          vendor: Western Digital
          physical id: 0
          bus info: scsi@0:0.0.0
          logical name: /dev/sda
          version: 1H18
          serial: WD-WMAYV2047220
          size: 232GiB (250GB)
          capabilities: partitioned partitioned:dos
          configuration: ansiversion=5 logicalsectorsize=512 sectorsize=512 signature=8224110b
     *-cdrom
          description: DVD reader
          product: DVD D  DH16D6SH
          vendor: hp
          physical id: 1
          bus info: scsi@1:0.0.0
          logical name: /dev/cdrom
          logical name: /dev/dvd
          logical name: /dev/sr0
          version: BHD4
          capabilities: removable audio dvd
          configuration: ansiversion=5 status=nodisc

***********************************************************

- I am trying to install following the OpenCore guide by generating the SSDT with SSDttime and left the results:

For SSDT-AWAC, says this:

"Locating ACPI000E (AWAC) devices...
 - Could not locate any ACPI000E devices!  SSDT-AWAC not needed!"



- He always stops at ACPI I suppose ....

Panic Opencore_1

Panic Opencore_2



- From the USB of Olarila Image, I always receive Kernel Panic, Sierra and High Sierra at the same point:



Panic Olarila_1

Panic Oarila_2

- Other details that I do not know if it will be related: At the start of linux, it gives me some warning lines with ACPI failures: Maybe it's because the computer is old and the linux kernel is new (Debian 11) See if it helps to resolve the issue of installing macOS.

Linux_boot_1

Linux_boot_2

- I use the Bios version v01.13 (I think is not possible downgrade) and Sata Emulation -> AHCI. Serial Port A -> Disable.

Just legacy mode, no UEFI version.

Bios_1

Bios_2

Bios_3



I put here the attachments.

I do not know much about this topic.

I only know how to follow guides and step by step.

Greetings and thanks in advance.

Santiago.



ResultsSSDTTime.zip ImagesBootPanic.zip

Edited November 13, 2021 by Santiago Rodríguez
Adding Info

[MaLd0n]

use clover series folder

https://www.olarila.com/topic/5676-hackintosh-efi-folders-for-all-chipsets-clover-and-opencore/



[Santiago Rodríguez]

Thank you very much for the reply.

But I still could not install the system on the computer.

I have used the USB with the Olarila images of High Sierra and Mojave and I have not been able to get to the installer.

According to your instructions, I have put the CLOVER EFI folder of the series "(--CHIPSET SERIES 5, 6, 7, 8, 9 (NEHALEM / SANDY BRIDGE / IVY BRIDGE / HASWELL / BROADWELL)" on the USB, keeping the "boot "to be able to boot in legacy mode, but I have not achieved anything either.

I don't know if another solution will be possible.

Thanks in advance.

Santi.

[MaLd0n]

if ur hardware is legacy u need paste efi folder into partition and install clover in esp with boot0ss

[Santiago Rodríguez]

Yes, it is legacy.

I have tried to install with Olarila Image without results. (I add photos stopped in VoodooPS2Trackpad: Identify Touchpad Command Failed).

I have also tried what you told me:

Take Usb with Olarila Image.

Mount EFI of USB on another computer.

Clear EFI content.

Paste Clover series folder "CHIPSET SERIES 5, 6, 7, 8, 9 (NEHALEM / SANDY BRIDGE / IVY BRIDGE / HASWELL / BROADWELL)"

Install Clover with the prompts:

-> Install CLover in the ESP

-> Boot Sectors

-> Install bootOss in MBR

-> Clover for BIOS (legacy) booting

Nothing else, no drivers, no scrpts.

When using it to install High Sierra on the computer.

Stop at the point where the photo shows.

I don't know what is wrong.

Greetings.

Santiago.

Three pics:

https://ibb.co/rMW4CjZ
https://ibb.co/pZwKFWJ
https://ibb.co/7zVTBV7

12nov.zip

Edited November 12, 2021 by Santiago Rodríguez
Adding info

[MaLd0n]

extract original tables with f4 key in clover boot screen

files generated in clover/acpi/origin

post files here

[Santiago Rodríguez]

Hello again.

Thanks for reply.

Here are the origin tables:



origin-HP-8100.zip

[MaLd0n]

Try. into clover/acpi/patched

DSDT.aml.zip

use usb 2 port

[Santiago Rodríguez]

Without results...

At this point I have tried:

Olarila Image replacing original Efi with EfI Clover Series.

Installing Clover to make it Legacy.

Adding the SSDT in Patched.

Now Patched folder has two files: DSDT.aml SSDT-OLAEC.aml

The result is in the photo:

Error loading kernel cache 0x7

Another attempt deleting SSDT-OLAEC and leaving only DSDT.aml the result has been in the second photo:

Attempting system restart .. MACH Reboot ...

Thank you, greetings.

Now I will go out to work.

Have a good day.

https://ibb.co/R6JG77g
https://ibb.co/x5tWtnj



12nov.zip

[MaLd0n]

DSDT.02.zip

[Santiago Rodríguez]

Good Morning: I've made more tries:

With both DSDTs (1st and 2nd) alternately.

On some occasions it taked for several minutes to develop and then it returned to me:

kextd stall [0], (240s): 'AppleACPICPU'

(Photo 1)

Later it goes to a fixed gray screen, without a pointer.

(Photo 2)

At other times it returns:

Attempting system restart ... MACH Reboot

And it stops.

I don't know what will go wrong. If you give me a hint, I can try more.

Greetings and thanks for your contribution.

Have a nice weekend.

Sanitago.

https://ibb.co/j5zGL9C
https://ibb.co/9cdmFkD

https://ibb.co/Yt1Rcpq



*************EDIT***********

Now, after several minutes...

After several minutes, on the gray screen, the mouse pointer appears, but in a circle of colors rotating.

It is like this for several minutes and the login screen in the installer does not appear.

I don't know whether to leave it like this for hours.

I'll add more information later.

Greetings.

13nov.zip

Edited November 13, 2021 by Santiago Rodríguez
Adding info

[MaLd0n]

3 hours ago, Santiago Rodríguez said:

(Photo 1)

Later it goes to a fixed gray screen, without a pointer.

what folder appears this screen?

use nv_disable=1

[Santiago Rodríguez]

Without results.

Now, with nv_disable=1 I only get this fixed screen:
Photo 1:

https://ibb.co/3YWTXcF



5 hours ago, MaLd0n said:

what folder appears this screen?

use nv_disable=1

Sorry for my bad english.

Here does not appears any folder, just the grey screen from installation macos, but no text during lot minutes. At the second attempt I arrived here, I have seen the macos pointer fluttering in color for many minutes, but the greeting from the macos installer has not appeared.





Recapping:
-I took an Olarila Image High Sierra 2020 on a pendrive.
-In another computer I mounted the efi partition of the USB and deleted the content of EFI +boot.
-I put inside the efi partition the unzipped folder "Clover --CHIPSET SERIES 5, 6, 7, 8, 9 (NEHALEM / SANDY BRIDGE / IVY BRIDGE / HASWELL / BROADWELL)"
My CPU is: Intel Core i7-870, 1st generation. (Lynnfield I presume) with SSE4.2 Socket 1156 Sockel H.
-Then I installed clover_R5142.pkg, to make it Legacy.
Install Clover with the prompts:

-> Install CLover in the ESP

-> Boot Sectors

-> Install bootOss in MBR

-> Clover for BIOS (legacy) booting

Nothing else, no drivers, no scripts. Unchecking BIOS Drivers, UEFI Drivers, RC_Scripts ...

-Subsequently I applied DSDT.aml patched without results.
Tries with DSDT.aml patched + SSDT-OLAEC.aml (ssdt-olaec.aml was inside the "PATCHED" folder and I didn't know whether to delete it, so I tried deleting and not deleting it, but I didn't get any results either.

Then I tried the second DSDT.aml to discard the first, in the same way, but without results.

Later I have tried with the start option nv_disable=1, using the first DSDT.aml and also using the second alternatively, but I have only obtained that it always stops at:
"Attempting system restart mach reboot"

In my many attempts, I only managed to get the system to start launching the macos installer on two occasions but it stayed on the gray screen and the mouse pointer spinning in color for many minutes.

Later, on other occasions with the same type of start, it has not gotten there.

I really don't know what to do and I don't want to take your time.
I appreciate the help and send you greetings.
Santiago.



IMG_3253.JPG.zip

Edited November 13, 2021 by Santiago Rodríguez
Adding Info

[MaLd0n]

post efi folder here

lets work only with basic for now

[Santiago Rodríguez]

Is more than 2,93 mb.

Mediafire:

https://www.mediafire.com/file/cbcavr3sy15ct40/Backupdeefi2.zip/file

Thanks in advance.

Santiago.

[MaLd0n]

kexts.zip

[Santiago Rodríguez]

With this kexts folder replacing the previous one, it reboots after 3 seconds of loading.
Tries checking Nvidia inject and unchecking nvidia inject is the same.
Thanks.
Santiago.



******************EDIT******************



With nv_disable=1 is the same, reboots unchecking nvidia inject or checking too.

Edited November 13, 2021 by Santiago Rodríguez

[Santiago Rodríguez]

I finally got it !
Image_1

Image_2

Image_3

Thanks to Olarila and Maldon in particular:
The method may not be very orthodox, but I did.
I took out the hard drive and installed it on another desktop computer easier to install with USB Olarila Image.
I left only that hard drive in the second computer (easy) and installed High Sierra by formatting, etc.
On reboot, it started easily on first boot with the USB Olarila Image HS2020.
Then I took out the hard drive and put it in the HP Compaq 8100.
I started with the USB Olarila Image High Sierra 2020 and from the USB it did start the system.
The problem was that I did not have a functional USB. it was not detecting any USB.
I put a Ps2 keyboard and Ps2 mouse that I had at home.
With a cable internet connection, I got down to business making an Opencore booter.  I use different kexts, mapped, etc, nothing worked.

I put the magic DSDT.aml that Maldon offered me here on Olarila and it magically worked.
Before that, I did all kinds of tests for the system to detect the USB of my computer, but they were useless.

Image_4



I imagine that with clover it will be similar, someone who tries it will be able to contribute it in the forum.
There is not much information on the Internet about this HP Compaq 8100 Mid Tower model and I will be able to help other people.

Now I have the system working, I have to make more corrections but it works normally, with USB, wifi (intel), etc.

I leave as a contribution the Config.list of Opencore 0.7.5
With many drivers and kexts that I keep from using Ps2 keyboard and mouse, but you can remove it.
I also have the patch for nVidia NVS 300 which is to inject my graphics card. You can remove it and adapt yours.

Sound was difficult with AppleALC.kext. It gave me a lot of startup problems that delayed starting for a few minutes. I finally opted for VoodooHDA.kext which is an easy solution.

Now I have to solve some details, such as that the system DOES NOT REBOOT, it stays stopped and does not shut down or restart.
It is a problem because I cannot apply Mac updates because that would break my system that cannot reboot.
I also don't know how to prevent it from always alerting me that updates are available that require a reboot.

Now I will follow the Opencore guide to configure the post install and try to finish it properly.

What I would like to know is what problem this computer has with USB, which I have not been able to solve myself and ... if someone gives me a clue of how it has been solved ...

I don't have the knowledge to understand Maldon's DSDT.aml, but I would like to know what specific problem this computer has in getting the USB ports to work.

Thank you.

Many thanks to Olarila.com and Maldon in particular.
Greetings.
Santiago.

Config.plist.zip

Edited November 25, 2021 by Santiago Rodríguez
Corrections.

[MaLd0n]
