DSDT patch requests

[lolimus]

Hi,

im trying to fix my DSDT for my MSI B85M-E45, but i cant find anything for this MB to fix the errors.

can you help me pls?

Errors:

6092	Error	syntax error, unexpected PARSEOP_ZERO
7859	Error	syntax error, unexpected '}', expecting '('
7913	Error	syntax error, unexpected '}', expecting '('
10235	Error	syntax error, unexpected PARSEOP_ARG0
14335	Error	syntax error, unexpected PARSEOP_IF
14375	Error	syntax error, unexpected $end and premature End-Of-File

DSDT.zip

[artur-pt]

hello

there it is



DSDT.aml.zip



good hack

[lolimus]

hello

there it is



[attachment=0]DSDT.aml.zip[/attachment]



good hack



WOW! Thank you so much!

[xedora]

Hi,

I tried to patch myself, but I couldn't, so thanks for this opportunity.

My computer is MSI GT60 Barebone (Ivy Bridge).

Here's my problems;

- Mac doesn't identify my display as a laptop screen, so I can't control the brightness. VGA and HDMI is not working.

- NVIDIA (Optimus) needs to be removed.

- Sleep function only closes the screen.

Send me İlter’s MacBook Air.zip

[artur-pt]

hello

try this one ..

should use macbookpro9,2



DSDT.aml.zip



if u must use ig-platform-id 4

no hdmi or vga

u can try to patch the capri kext

should have native usb .. only using system kext

sata

smbus

hdef layout 1

check the brightness

good hack

[xedora]

hello

try this one ..

should use macbookpro9,2



[attachment=0]DSDT.aml.zip[/attachment]



if u must use ig-platform-id 4

no hdmi or vga

u can try to patch the capri kext

should have native usb .. only using system kext

sata

smbus

hdef layout 1

check the brightness

good hack



Thanks for DSDT.

LVDS looks brighter but can't control.

As your suggestion, I switched to MacbookPro9,2.

I changed the ig-platform id to 3 but VGA and HDMI are still not working.

Also, I see that battery discharges very fast. In Windows, if HD4000 is using, power button led is white,but when GTX670 is started to be used, it goes to red. In Mac, power led is always red. Is there any fix for this?

[artur-pt]

hello

the ig-platform-id u don't choose what u want .. u choose the one works for ur pc

to have QE/CI

anyway the one injected in dsdt is 4

http://Olarila.com/forum/viewtopic.php?f=28&t=3111

forget for now the nvidia .. it don't work .. optimus don't work in os x

u have cpu power management working ?

http://Olarila.com/forum/viewtopic.php?f=28&t=1716

good hack

[xedora]

hello

the ig-platform-id u don't choose what u want .. u choose the one works for ur pc

to have QE/CI

anyway the one injected in dsdt is 4

http://Olarila.com/forum/viewtopic.php?f=28&t=3111

forget for now the nvidia .. it don't work .. optimus don't work in os x

u have cpu power management working ?

http://Olarila.com/forum/viewtopic.php?f=28&t=1716

good hack



With ID 3,4 and 9 I have QE/CI. I know nvidia won't work, but in system information, it is there. I think it is working but it doesn't have any effect on the system, so it needs to be deleted, but I don't know how.

I use clover, so cpu power management seems to be working. Is there any test for it?

Thanks

[artur-pt]

hello

u read the info here in forum .. about the several issues

we don't have a step by step for every config...

mac os x is for mac and apple do it for mac

hack mac os x is 99% of reading, googling, persistency and 1% of luck ur hardware are compatible with OS X

good hack

[AdemKinq]

Hello

I made everything work on my hackintosh (10.6.8) but cant make audio work! When I open "about this mac -> more info -> audio" it says no built-in audio. I think that means system cant see my alc892. I tried to make a dsdt but it didn't work as i couldn't do 1 of the steps (No pex0 neither 0x001c0000)

Help me pls

Send me Zeki’s Mac Pro.zip

[artur-pt]

hello

in a amd board the bios is all mess .. the devices address is all wrong ..

not the same as a intel board bios ..

my advice is to try to use voodoohda

good hack

[ahmedsalahais]

Hi all, I'm testing 10.10 beta on Lenovo Y510P and I'm having a 'working' system. I'm missing some functionality and I guess it's time for some DSDT patching so I started looking here. What I'm missing is:

• Sleep: my system only turn off display when I click set OS X to sleep, then any button or mouse click will turn display on again but it never sleep actually.

• Sleep on LID close: assuming sleep would work, fixing this would be a great addition!

• Restart: it works sometimes, but not always. sometimes it put the system into unusable state where display is off but computer still running and it keep like that.

• Graphics glitches: I was able to inject graphics card (Intel HD 4600) device ID into Clover and I have QE/CI with 1536MB which is fine. But I have some glitches in few apps and log-in screen, can a DSDT patch fix that?

• Brightness control: I don't have the slider in System Preferences > Display

• Brightness control via key combination is a great addition!



I know these are much, but any fix would be appreciated. And yes I know 10.10 is still in beta and is not bug free, but most of these problems appeared to me with Mavericks as well, After all, a DSDT is a DSDT and have o be fixed and patched if it's not that good.

Attached is both Send me and my ACPI files. Thanks in advance

Regards

Ahmed

ACPI.zip

Send me Lenovo-PC.zip

[artur-pt]

@ahmedsalahais

hello

there it is must use both files .. ur graphics are in ssdt-0



DSDT.zip



test it ..

also inject hdef for applehda

if u have problems.. use applehdadisabler

good hack

[ahmedsalahais]

@ahmedsalahais

hello

there it is must use both files .. ur graphics are in ssdt-0



[attachment=0]DSDT.zip[/attachment]



test it ..

also inject hdef for applehda

if u have problems.. use applehdadisabler

good hack



Hello. Thanks for this.

I used both and I noticed one thing only changed that is the Brightness Control shown up in System Preferences > Display. However it is not functioning neither using the slider nor using key combination of course (I tried a couple of ACPIBacklid.kext).

Still no sleep. And I don't know why I need to inject applehda? I'm using voodooHDA .. I'd like to use native kext of course but at least I've a working sound for now so I'm trying to focus on more serious problems.

Thanks

[artur-pt]

Hello. Thanks for this.

I used both and I noticed one thing only changed that is the Brightness Control shown up in System Preferences > Display. However it is not functioning neither using the slider nor using key combination of course (I tried a couple of ACPIBacklid.kext).

Still no sleep. And I don't know why I need to inject applehda? I'm using voodooHDA .. I'd like to use native kext of course but at least I've a working sound for now so I'm trying to focus on more serious problems.

Thanks



hello

try again with this one .. and should search for solutions for that model.. mine is working all of that.. but.. i searched for solutions..

about the sound if u don't have problems.. loading voodoohda.. just forget what is in dsdt..



DSDT.zip



good hack

[ahmedsalahais]

Thank you for your help.

The second one, unfortunately, made the brightness slider disappear again.

I'll back to the first one you gave me and start searching ...

Any thing regarding sleeping? It is really important to me.

Thanks

[artur-pt]

hello

u know sleep is a combination of several things ?

for u to have sleep must have usb , graphics, sound to 100% ?

have u see any messages regarding sleep or wake problems in console ?

what smbios are u using ?

have u disable the nvidia graphics ?

post ur ioreg .. with the dsdt ... http://Olarila.com/files/Utils/IORegistryExplorer.zip

i don't go do ur hack .. that is ur job .. i can help .. but for that u must help .. and don't hope any miracles

if u don't help is not easy help u

good hack

[ahmedsalahais]

Hi,

First thanks for the reply even if helped or not.

Just to let you know I want to do everything by my hand and I'm not happy if you, or anybody else, do anything for me. However, I'm not expert like millions others and I'll appreciate if anybody is willing to give me a hand on what to do. The rules for this thread was to post my clean DSDT and the Send me file along with what I want to achieve which is exactly what I did. I don't think I made anything so you feel I depend on you which is not.

Anyway, here's a link to my ioreg file: http://1drv.ms/1wNeCSB

My clean DSDT (with SSDTs) are here: http://Olarila.com/forum/download/file.php?id=6380

My current DSDT is the first one you sent me here: http://Olarila.com/forum/download/file.php?id=6382

My Send me file is here: http://Olarila.com/forum/download/file.php?id=6381

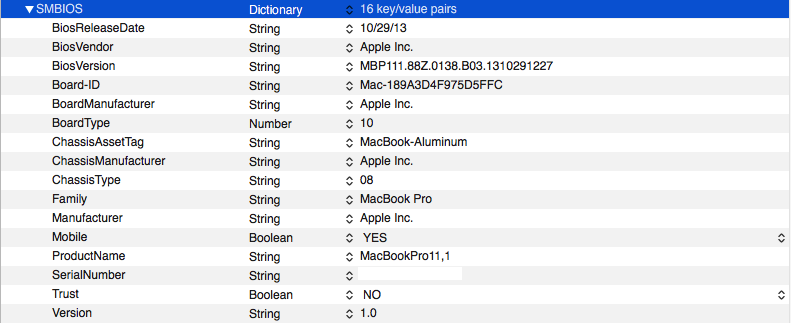

My SMBIOS is attached as image, I use clover so no smbios.plist

Regarding Sleep requirements, I have USB, Sound (voodooHDA), and graphics (with tiny glitches at login) all working 100%.

Finally, here's snippets from the console for sleep and wake:

Sleep :

Sep 26 10:50:02 Lenovo-PC.local WindowServer[118]: handle_will_sleep_auth_and_shield_windows: Deferring.
Sep 26 10:51:30 localhost kernel[0]: ACPI: sleep states S3 S4 S5
Sep 26 10:51:35 Lenovo-PC.local discoveryd[48]: Basic SleepProxy BSP Server Disabled. Metric = 3373
Sep 26 10:51:35 Lenovo-PC.local discoveryd[48]: Basic SleepProxy Could not get the primary interface
Sep 26 10:51:35 Lenovo-PC.local discoveryd[48]: Basic SleepProxy Sleep Proxy Server is not enabled
Sep 26 10:51:50 Lenovo-PC.local discoveryd[48]: Basic SleepProxy Could not get the primary interface
Sep 26 10:52:35 Lenovo-PC.local WindowServer[119]: handle_will_sleep_auth_and_shield_windows: Deferring.
Sep 26 10:54:11 Lenovo-PC.local WindowServer[119]: handle_will_sleep_auth_and_shield_windows: Deferring.
Sep 26 11:27:30 Lenovo-PC.local WindowServer[119]: handle_will_sleep_auth_and_shield_windows: Deferring.



Wake:

Sep 26 10:51:34 Lenovo-PC.local apsd[49]: Attempt to set push wake topics without dark wake enabled: ()
Sep 26 10:51:58 Lenovo-PC.local apsd[49]: Peer [pid=264] requested push wake but lacks APSPushWakeEntitlement
Sep 26 10:52:08 Lenovo-PC.local apsd[49]: Attempt to set push wake topics without dark wake enabled: ()
Sep 26 10:52:34 Lenovo-PC.local sharingd[230]: 10:52:34.900 : Starting AirDrop server for user 501 on wake
Sep 26 10:52:35 Lenovo-PC.local WindowServer[119]: CGXDisplayDidWakeNotification [81336114330]: posting kCGSDisplayDidWake
Sep 26 10:54:11 Lenovo-PC.local sharingd[230]: 10:54:11.138 : Starting AirDrop server for user 501 on wake
Sep 26 10:54:11 Lenovo-PC.local WindowServer[119]: CGXDisplayDidWakeNotification [177572557653]: posting kCGSDisplayDidWake
Sep 26 11:27:29 Lenovo-PC.local sharingd[230]: 11:27:29.972 : Starting AirDrop server for user 501 on wake
Sep 26 11:27:30 Lenovo-PC.local WindowServer[119]: CGXDisplayDidWakeNotification [2176444160167]: posting kCGSDisplayDidWake



I hope this will make it clearer and easier, if you still wish to offer any help. And of course, thank you all the way.

Regards,

Ahmed

EDIT:

This is a snippet from running pmset -g log

Sleep/Wakes since boot at 2014-09-26 10:51:33 +0100 :0   Dark Wake Count in this sleep cycle:0

Time stamp                Domain              	Message                                                                    	Duration  	Delay
==========                ======              	=======                                                                    	========  	=====
UUID: 4374BC17-2EAC-41A0-B93C-7CDBA2C98E1D
2014-09-26 11:27:26 +0100 Notification        	Display is turned off
2014-09-26 11:27:26 +0100 Assertions          	PID 26(powerd) Created InternalPreventSleep "com.apple.powermanagement.darkwakelinger" 00:00:00  id:0xd000001e5 [system: SRPrevSleep kCPU]
2014-09-26 11:27:29 +0100 Notification        	Display is turned on
2014-09-26 11:27:29 +0100 Kernel Client Acks  	Delays to Sleep notifications: [AppleIntelFramebuffer driver is slow(msg: SetState to 1)(371 ms)]
2014-09-26 11:27:41 +0100 Assertions          	PID 26(powerd) TimedOut InternalPreventSleep "com.apple.powermanagement.darkwakelinger" 00:00:15  id:0xd000001e5 [system: SRPrevSleep kCPU]
2014-09-26 11:50:01 +0100 Notification        	Display is turned off
2014-09-26 11:54:53 +0100 Notification        	Display is turned on

2014-09-26 11:56:29 +0100 :Showing all currently held IOKit power assertions
Assertion status system-wide:
  BackgroundTask                 0
  ApplePushServiceTask           0
  UserIsActive                   0
  PreventUserIdleDisplaySleep    0
  PreventSystemSleep             0
  ExternalMedia                  0
  PreventUserIdleSystemSleep     0
  NetworkClientActive            0
Kernel Assertions: 0x100=MAGICWAKE
  id=503  level=255 0x100=MAGICWAKE mod=01/01/1970 01:00 description=en1 owner=en1

[ahmedsalahais]

Okay, it seems it sleep fine but takes much time ~20 sec. (I searched and found this normal for 10.9 so it might be the same for 10.10)

I fixed one problem with waking by turning off "Wake for network access" but it still wakes up immediately because of bluetooth. I turned off "Allow Bluetooth devices to wake this computer" but it doesn't fix it. It looks like a problem with the bluetooth kext (I have BCM4352 and use Bluetooth Firmware Uploader http://forum.osxlatitude.com/index.php?/topic/2925-bluetooth-firmware-uploader/ )

Going to remove that kext and test sleep/wake again.

[artur-pt]

hello

seems u making progress

where see any pc sleep immediately ? i take always some time .. prepare the machine to sleep

sleep in clover i use hibernation

after 15 m my lcd is screen saver .. after 1 hour it hibernate..

check also ur efi drivers .. read in clover .. maybe ur sleep problems come from there

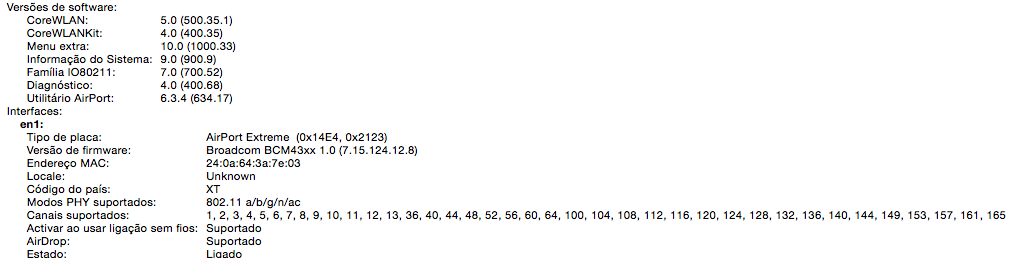

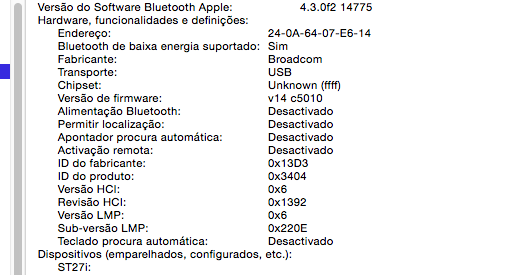

about the bluetooth i use same kext and no problems









for the ethernet lan i use this kext

http://www.insanelymac.com/forum/topic/300056-solution-for-qualcomm-atheros-ar816x-ar817x-and-killer-e220x/

good hack

[ahmedsalahais]

Hi, thanks for the reply.

I only use WiFi and since I disabled "Wake for network access" I got rid of the Ethernet assertion:

Kernel Assertions: 0x100=MAGICWAKE
  id=503  level=255 0x100=MAGICWAKE mod=01/01/1970 01:00 description=en1 owner=en1

I don't have it any more which is good.

Now the machine sleeps almost 30 seconds actually, OK. But it wakes immediately and this is the output of pmset -g log :

Sleep/Wakes since boot at 2014-09-26 13:51:37 +0100 :2   Dark Wake Count in this sleep cycle:1

Time stamp                Domain              	Message                                                                    	Duration  	Delay
==========                ======              	=======                                                                    	========  	=====
UUID: 8A29F7EA-22CC-4CB9-AAA7-D448C8D5F91C
2014-09-26 14:09:17 +0100 Notification        	Display is turned off
2014-09-26 14:09:17 +0100 Assertions          	PID 26(powerd) Created InternalPreventSleep "com.apple.powermanagement.darkwakelinger" 00:00:00  id:0xd000001bc [system: SRPrevSleep kCPU]
2014-09-26 14:09:32 +0100 Assertions          	PID 26(powerd) TimedOut InternalPreventSleep "com.apple.powermanagement.darkwakelinger" 00:00:15  id:0xd000001bc [system: SRPrevSleep kCPU]
2014-09-26 14:09:32 +0100 Sleep               	Entering Sleep state due to 'Software Sleep pid=64': Using AC (Charge:100%) 	23 secs
2014-09-26 14:09:33 +0100 Wake Requests       	[*proc=discoveryd request=Maintenance inDelta=6478]
2014-09-26 14:09:33 +0100 PM Client Acks      	Delays to Sleep notifications: [com.apple.apsd is slow(1927 ms)]
2014-09-26 14:09:50 +0100 Notification        	Display is turned on
2014-09-26 14:09:55 +0100 Wake                	Wake [CDNVA] due to XHC1/HID Activity: Using AC (Charge:100%)
2014-09-26 14:09:55 +0100 Kernel Client Acks  	Delays to Wake notifications: [ApplePS2Controller driver is slow(msg: SetState to 2)(1160 ms)] [AppleIntelFramebuffer driver is slow(msg: SetState to 2)(338 ms)] [PRT5 driver is slow(msg: SetState to 2)(4451 ms)]

Total Sleep/Wakes since boot at 2014-09-26 13:51:37 +0100 :3

2014-09-26 14:17:03 +0100 :Showing all currently held IOKit power assertions
Assertion status system-wide:
  BackgroundTask                 0
  ApplePushServiceTask           0
  UserIsActive                   0
  PreventUserIdleDisplaySleep    0
  PreventSystemSleep             0
  ExternalMedia                  0
  PreventUserIdleSystemSleep     0
  NetworkClientActive            0
No kernel assertions.

This is from Console:

Sep 26 14:09:43 Lenovo-PC kernel[0]: Wake reason: XHC1
Sep 26 14:09:50 Lenovo-PC kernel[0]: full wake promotion (reason 1) 4052 ms
Sep 26 14:09:50 Lenovo-PC.local WindowServer[119]: CGXDisplayDidWakeNotification [1101908392742]: posting kCGSDisplayDidWake
Sep 26 14:09:50 Lenovo-PC kernel[0]: ARPT: 1101.969951: AirPort_Brcm43xx::powerChange: System Wake - Full Wake/ Dark Wake / Maintenance wake
Sep 26 14:09:55 Lenovo-PC.local discoveryd[48]: Basic DNSResolver UDNSServer:: PowerState is Wakeup
Sep 26 14:09:55 Lenovo-PC.local sharingd[228]: 14:09:55.478 : Starting AirDrop server for user 501 on wake
Sep 26 14:09:56 Lenovo-PC.local ntpd[144]: wake time set +0.806043 s



The wake reason is XHC1 by AirPort_Brcm43xx::powerChange. That's why I'm suspecting the WiFi card or its Bluetooth part. Somethings makes it require the machine to wake up and that needs to be disabled. I don't know should that be done in kexts or where.

[artur-pt]

hello

it seems is usb3 ...

try to google about .. u use third part kext for usb3 .. like genericusbxhci ?

that kext have several sleep problems

good hack

[ahmedsalahais]

Hi

No I don't have this kext installed (I have it stored other place).

By the way, The last DSDT+SSDT-0 you sent me:

• Showed the brightness slider.

• Changed something in power management so that sleep is made possible (with need to some fixes of course).

• Changed something in power management so that Restart no longer works as it was.

• Graphics sometimes feels like using 16-bit colors and have to restart to fix it temporarily but again it get distorted after some time.



So I switch back to default DSDT and trying to figure out how to edit it without the side effects. Could you share what you changed inside the DSDT and SSDT-0?

Thanks

[artur-pt]

hello

8 series patch

DSDT

usb

xhci

sata

smbus

pnlf

hdef

ssdt-0 is ur ssdt-3

igpu

injecting the ig-platform-id for ur graphics

u can try others

this is ur dsdt.dsl without any patches .. and no errors



DSDT.dsl.zip



good hack

[ahmedsalahais]

Thanks,

So this is the graphics patch in ssdt-0:



Method (_DSM, 4, NotSerialized)
           {
               If (LEqual (Arg2, Zero))
               {
                   Return (Buffer (One)
                   {
                       0x03
                   })
               }

               Return (Package (0x04)
               {
                   "AAPL,ig-platform-id",
                   Buffer (0x04)
                   {
                       0x0A, 0x26, 0x22, 0x06
                   },

                   "hda-gfx",
                   Buffer (0x0A)
                   {
                       "onboard-1"
                   }
               })
           }



I was wondering about the ig-platform-id as I know it's 0x0A268086 not 0x0A262206. Is this correct or something I don't understand?
