DSDT patch requests

[artur-pt]

@kaddroid

there it is



DSDT.aml.zip



read and apply

http://Olarila.com/forum/viewtopic.php?f=28&t=1703

http://Olarila.com/forum/viewtopic.php?f=28&t=736

good hack

[k4ck]

Hello

@artur-pt

I tried to use your newest DSDT.aml but still i get a kernel panic "HPETs not availiable.. CPUs not configured correctly"

Do you need any more information, can i give your any data?

X86PlatformPlugin is running and loading at CPU0 node, what is the problem, why does it make this kernel panic?

and AppleHPET is not running is that a problem?

I attached my system.log, you can see any failure in it?

I found this:

Jan 29 11:38:58 jebbys-MacBook-Pro kernel[0]: Controller: Intel Panther Point (vendor ID: 8086, device ID: 1e20)

Jan 29 11:38:58 jebbys-MacBook-Pro kernel[0]: error: failed to open PCI device

and powermanagement

Jan 29 11:41:40 jebbys-MacBook-Pro kernel[0]: IOPPF: AppleIntelCPUPowerManagement mode

Jan 29 11:41:40 jebbys-MacBook-Pro kernel[0]: init

Jan 29 11:41:40 jebbys-MacBook-Pro kernel[0]: probe

Jan 29 11:41:40 jebbys-MacBook-Pro kernel[0]: start

system.zip

[artur-pt]

hello

u should use this smbios





and use this config.plist

only change the smbios part



config.plist.zip



good hack

[k4ck]

@artur

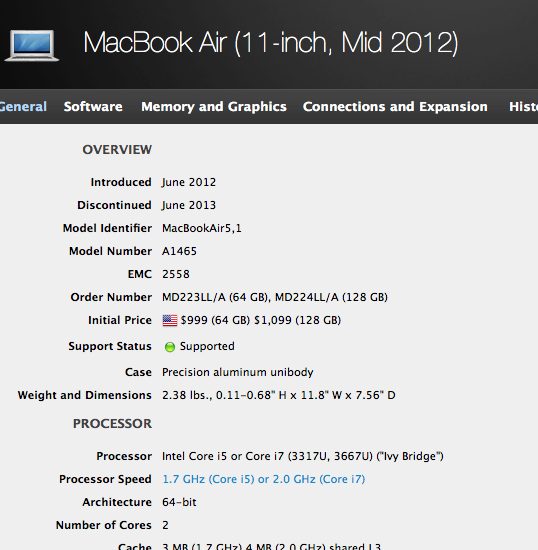

I used your config file and changed it to MacBookAir5,1, cpu is detected all looks fine, but i still get kernel panic..... why?

I attached the config file. X86Platformplugin is loaded too

EDIT: Attached boot system.log

Thanks for your time

config.zip

system.zip

[artur-pt]

hello

u install must be messy.. i don't see any other reason .. i see also u use voodoohda and applehda.. use 1 or another

and u are using niresh distro

sorry.. here is Olarila.com

my advice to u is to use one of our images, all are retail.. only have the necessary kext for a pc to boot

the problem now .. i'm sure is not from dsdt..

if u go using one of our images open a post in the right place and i help u

good hack

[k4ck]

Okay thanks alot i will try to reinstall with an retail image

[digilevi]

Hi Guys,

I really would like to request a patched DSDT.aml for my system. I really need to make my Wifi, Ati Graphics and Sound(using AppleHDA) work please. Thanks in Advanced

my SPECS

OSX Mavericks

graphics: ATI 7600m + 7640G Dual Graphics

WIFI Qualcomm Atheros AR9485

Audio: ALC269

DSDT(untouched).aml.zip

Send me user101’s Mac Pro.zip

[artur-pt]

@digilevi

hello

have u read or google about u hardware in mac os x ? i think not.. is the second or third time u ask that

u graphics don't work

u wifi don't work

the sound is another story...

what u think is DSDT ? GOD to make that incompatible hardware .. compatible .. perhaps like a mac .. no ?

good hack

[digilevi]

@artur...

sorry about that...

can i just get at least a patch for the audio? coz the VoodooHDA has a lot of crackling noise . Thanks again in advanced

[bermanx]

hi my dsdt and config file is attached. please anyone can patch these?

myfiles.zip included using beforely patched dsdt. now i changed wifi card and not work properly patched dsdt.

new dsdt in rar. i want to patched for all problems. (applehda alc892 - hd4000 - gtx675mx - battery - sleep - lcd backlight - audio hdmi...)

thank you for now.

myfiles.zip

[manoon91]

Anyone can help to fix my DSDT and teach me to fix if it possible i want to fix by myself this file extract form bios v 1.8

Z87-GD65 GAMING.zip

Edited January 30, 2014 by Guest

[artur-pt]

hello

see and read this

http://Olarila.com/forum/viewtopic.php?f=19&t=634

good hack

[k4ck]

Thanks @artur, after using your clean image cpu is running with speedstep and no more HPET errors.

I just got one more question my DPCI Manager shows only one P State it doesn't change from PState 8

[artur-pt]

hello

try to read and apply

http://Olarila.com/forum/viewtopic.php?f=28&t=1703

maybe u must use ssdt.. is all there

good hack

[takeawaydave]

hello - could you please help me adding built in ethernet to ethernet on POP8 interface.

i extracted DSDT using DSDT Editor and clicked compile and then fixed errors. I still have a ton of warnings.

Thanks !

EDIT: I made an edit and I have attached. Could this correctness be verified ? ONly change 1 NIC not both yet.

DSDT.aml.zip

takeawaydave_2x5660_5,1_noDisceteGPU.zip

DSDT-edited.aml.zip

[tjandrade]

Problems -> Brightness control not working

High CPU temperature 79+ degrees

Some basic fixes

Thanks



EDIT:

- I forgot to add the dsdt.aml

- The display brightness isn't working

- the sound controller is now working.

dsdt.aml.zip

[takeawaydave]

hello - could you please help me adding built in ethernet to ethernet on POP8 interface.

i extracted DSDT using DSDT Editor and clicked compile and then fixed errors. I still have a ton of warnings.

Thanks !

EDIT: I made an edit and I have attached. Could this correctness be verified ? ONly change 1 NIC not both yet.



Hello - I have updated my device id's on the ethernet ports using ethtool and the 2 NIC's are now present.

I have a problem where neither of them are able to be en0 - and are en2 and en3. How can one of them be forced to en0 - I guess the wireless card would need to become en4.

EDIT: Fixed - created ARTP Device for wireless and then deleted preferences.plist and Networkconf.plist and restarted. BSD Names are now ok and connection works - not 100% sure on how it all works but looking better

DSDT.aml.zip

takeawaydave_2x5660_5,1_noDisceteGPU_2x82574L.zip

Edited January 31, 2014 by Guest

[k4ck]

@artur, i got only one last problem to fix.

power management is fully working, my only problem is that it does not detect any battery.

Could you patch the dsdt file for me to make it work?

thanks a lot for all your hard work

DSDT.aml.zip

[artur-pt]

@artur, i got only one last problem to fix.

power management is fully working, my only problem is that it does not detect any battery.

Could you patch the dsdt file for me to make it work?

thanks a lot for all your hard work



hello

that is a personalize patch try to see here

https://github.com/RehabMan/Laptop-DSDT-Patch/tree/master/battery

good hack

[pjtala]

Hi, I'd like my DSDT to be patched in order to achieve SpeedStep, Sleep, and Slider for brightness.

Thank you very much.

My sistem:

ASUS X54C

i7 2640M

MB K54C

HD 3000

8GB RAM 1333

120 GB SSD

ALC269

Sandybridge

DSDT_X54C.zip

[artur-pt]

hello

try this one



DSDT.aml.zip



read and apply

http://Olarila.com/forum/viewtopic.php?f=28&t=1716

http://Olarila.com/forum/viewtopic.php?f=28&t=1703

good hack

[pjtala]

Thank you Artur

Now, my hack works well.

Sleep - working with EHCI patch.

SpeedStep - working

Brightness Slider - working with PNLF patch.

Thank you for your time!

Cheers.

[artur-pt]

Anyone can help to fix my DSDT and teach me to fix if it possible i want to fix by myself this file extract form bios v 1.8



hello

is a mess that dsdt

anyway try this



DSDT.zip



good hack

[jason_266]

hello i have one HP pavillion DV6 1340ev and if you can i want to patch my dsdt.thanks

intel cantiga pm45

intel core 2 duo t6600 2.19GHz

ati radeon 4530 512mb

IDT 92HD75B3X5

4GB memory 800MHz

BCM 4312 wifi

dsdt.dsl.zip

[artur-pt]

@jason_266

hello

there it is



DSDT.zip



read and apply

http://Olarila.com/forum/viewtopic.php?f=28&t=1703

http://Olarila.com/forum/viewtopic.php?f=28&t=736

good hack
