DSDT patch requests

[artur-pt]

@ bibi785

hello

anyway there it is



DSDT.aml.zip



good hack

[bibi785]

Thanks it worked! Finally I re-flashed my USB stick for installation, made a clean vanilla install (it went fine with some boot flags) and installed Chameleon on my HDD with your DSDT. The HD4000 is working perfect but there are a few things which are not working :

- Audio (I tried a VoodooHDA kext but it didn't work, my chipset is ALC663)

- Webcam

- Wifi (my card is an Atheros AR9485 and I can't find any kexts, I think there aren't)

- Multimedia keys and scrolling on trackpad (well it's not very important though)

Do you think there are DSDT patches for these things, or kexts, or no solution?

Thanks

[artur-pt]

hello

wifi no chance..

about audio only 2 solutions

voodoohda last version is 2.8.4

or applehda

http://Olarila.com/forum/viewtopic.php?f=28&t=454

http://Olarila.com/forum/viewtopic.php?f=9&t=1933

try there to talk with mirone

and post in the right place..

good hack

[eng_matt]

hello

try this one



[attachment=0]DSDT.aml.zip[/attachment]



good hack



Thank you but didn't fixed my issue..

Here -v picture ;

How can i fix my wifi ?

[artur-pt]

@eng_matt

hello

are u using io80211 original kext..

what i see u have problems with kext...

maybe u mess with the kext for network.. trying to make it work

good hack

[Radu66]

I made progress:

I installed clover to see if the sleep issue, restart and shutdown has something to do with the bootloader that I use.Same results with chameleon and clover.

I "Disabled" "USB Legacy" (in description is mentioning support for mouse and keyboard) in my bios.(now restart and shutdown works and are instant)

Now I can't use my keyboard in the chameleon menu.

The computer will sleep now, but there is a but, it will not wake up from keyboard(I checked to see if it has to do with the Disabled function USB Legacy in my bios, I can still wake up windows with my keyboard even with USB Legacy Off in my bios ).

The computer is waking up and resuming if I push the power button, and another but, my display is in stand by(I checked if the computer is frozen, but I hear sounds when I press the volume keys on my keyboard) and I have to reboot.

I messed with darkwake and usbbusfix and I see no changes.

I still get this:

ACPI: sleep states S3 S4 S5

USBF: 2.688 AppleUSBEHCI::CheckSleepCapability - controller will be unloaded across sleep

USBF: 2.689 AppleUSBEHCI::CheckSleepCapability - controller will be unloaded across sleep

USBF: 2.739 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep[RealtekRTL81xx:init] Using updated PHY config method

USBF: 2.745 USBF: 2.745 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleepAppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

USBF: 2.746 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

USBF: 2.746 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

USBF: 2.748 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

USBF: 2.751 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

USBF: 2.753 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

USBF: 2.756 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

USBF: 2.768 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

I can see that only the first two lines are AppleUSBEHCI and the rest are AppleUSBOHCI

Sometimes I get this USBF: 0.261 We could not find a corresponding USB EHCI controller for our OHCI controller at PCI device number19

My OSX will behave the same even with the additional error above.

My motherboard has 4 USB at the back and some internals "3 x USB 2.0 connector supports additional 6 USB 2.0 ports ".

So I have 10 USB ports in total and 10 AppleUSBOHCI errors, and 2 AppleUSBEHCI errors(in bios I have the option to disable "USB EHCI Controller" the description says "support for the usb 2.0".

My GPU is ATI 4870.

I timed the sleep to easily collect info from the Console and I got this after I press the power button to wake up the computer:

1/2/14 5:50:27.000 PM kernel[0]: Wake reason: ?

1/2/14 5:50:27.000 PM kernel[0]: SMC::setPowerState ERROR: smcPublishSleepCause failed (kSMCKeyNotFound)

1/2/14 5:50:27.000 PM kernel[0]: USBF: 387. 4 AppleUSBEHCI::CheckSleepCapability - controller will be unloaded across sleep

1/2/14 5:50:27.000 PM kernel[0]: USBF: 387. 19 USBF: 387. 19 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleepAppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

1/2/14 5:50:27.000 PM kernel[0]: USBF: 387. 19 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

1/2/14 5:50:27.000 PM kernel[0]: USBF: 387. 19 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

1/2/14 5:50:27.000 PM kernel[0]: USBF: 387. 19 AppleUSBOHCI::CheckSleepCapability - controller will be unloaded across sleep

1/2/14 5:50:28.680 PM configd[18]: LINKLOCAL en0: parent has no IP

1/2/14 5:50:31.329 PM configd[18]: network changed: v4(en0-:192.168.1.123) v6(en0-:2a02:2f09:338a:600:21f:c6ff:feb5:fcb3) DNS- Proxy-

1/2/14 5:50:31.352 PM configd[18]: setting hostname to "Radus-iMac.local"

1/2/14 5:50:31.459 PM configd[18]: network changed: v4(en0+:192.168.1.123) DNS+ Proxy+ SMB

1/2/14 5:50:31.476 PM configd[18]: setting hostname to "radus-imac.lan"

1/2/14 5:50:31.000 PM kernel[0]: considerRebuildOfPrelinkedKernel prebuild rebuild has expired

1/2/14 5:50:31.000 PM kernel[0]: USBMSC Identifier (non-unique): 3512083103000299 0x1687 0x3257 0x1100, 2

1/2/14 5:50:33.000 PM kernel[0]: USB Sound assertion in AppleUSBAudioEngine at line 1573

1/2/14 5:50:33.552 PM configd[18]: network changed: v4(en0:192.168.1.123) v6(en0+:2a02:2f09:338a:600:11ee:45fc:779f:ff7e) DNS! Proxy SMB

1/2/14 5:50:35.034 PM configd[18]: network changed.

1/2/14 5:50:35.304 PM configd[18]: network changed: v4(en0:192.168.1.123) v6(en0!:2a02:2f09:338a:600:21f:c6ff:feb5:fcb3) DNS Proxy SMB

1/2/14 5:50:38.000 PM kernel[0]: full wake (reason 1) 11741 ms

1/2/14 5:50:38.749 PM WindowServer[90]: CGXDisplayDidWakeNotification [398677686403]: posting kCGSDisplayDidWake

1/2/14 5:50:38.749 PM WindowServer[90]: handle_will_sleep_auth_and_shield_windows: Deferring.

1/2/14 5:50:45.517 PM ntpd[116]: ntpd: time set +1.606833 s

1/2/14 5:50:45.532 PM com.apple.time[182]: Interval maximum value is 946100000 seconds (specified value: 9223372036854775807).

1/2/14 5:50:48.835 PM configd[18]: network changed: v4(en0:192.168.1.123) v6(en0:2a02:2f09:338a:600:21f:c6ff:feb5:fcb3) DNS! Proxy SMB

1/2/14 5:51:02.283 PM loginwindow[63]: CoreAnimation: warning, deleted thread with uncommitted CATransaction; set CA_DEBUG_TRANSACTIONS=1 in environment to log backtraces.

------------------

I removed NullCPUPowerManagement.kext some time ago and still get this in the boot process:

1/2/14 5:53:13.000 PM kernel[0]: warning: skipping personalities in blacklisted kext com.apple.driver.AppleIntelCPUPowerManagement

1/2/14 5:53:13.000 PM kernel[0]: NullCPUPowerManagement::init: properties=0xffffff800a552e80

1/2/14 5:53:13.000 PM kernel[0]: NullCPUPowerManagement::start

and in terminal after I execute "kextstat" I can find :

13 0 0xffffff7f80cb8000 0x2000 0x2000 org.tgwbd.driver.NullCPUPowerManagement (1111) <7 4 3>

-----------------

And I have this too:

1/2/14 5:53:13.000 PM kernel[0]: Refusing new kext com.apple.driver.AppleRTC, v2.0: already have prelinked v1111.0.

( I have "Patched_10.7_AppleRTC.kext" that came with MyHack, I am on 10.9 )

In org.chameleon.Boot.plist I have : Generate P and C states, Enable C2 C 3 C4 States, CST Using SystemIO

----------------------------------

For now I did a workaround to get my display to wake up after sleep, with a combination of 2 different "vga to dvi adapters"(they don't behave the same) 1 is connected to act like a dummy(its really really weird from my point of view) and by moving my monitor on the right side port on my 4870 .

_________________________________________-------------____________________________

So the only thing that is left is the wake up from my keyboard.

I don't use any dsdt.aml right now

-----------------------------------_______________-------------------------

[d_a_l_3]

Here is my dumped DSDT but cant get it compiled, getting this errors

attached is my DSDT if somebody can help to to patch it for my hackintosh

It's laptop, Acer v2 772G

i7-4702MQ

GTX760M

8GB RAM

120GB SSD + 750GB HDD

i can boot to mac, but half stuff doesn't work so DSDT should help me working a lot stuff

if some1 can help me with this I would appreciate it

THX

acpi_dsdt.aml.zip

[artur-pt]

hello

i think u problem is not the dsdt ..

anyway there it is



DSDT.aml.zip



http://Olarila.com/forum/viewtopic.php?f=28&t=1716

http://Olarila.com/forum/viewtopic.php?f=28&t=1703

good hack

[nautiakopnoy]

Any way of getting my sound to work. ALC888 and this to compile?

Gigabyte GA-945GME-DS2 Rev 2.0

Core 2 duo

dsdt.zip

[artur-pt]

@nautiakopnoy

hello

there it is



DSDT.zip



anyway u must find a patched applehda to that alc

hdef is injected in dsdt with layout (0C) 12

read and apply

http://Olarila.com/forum/viewtopic.php?f=28&t=1716

http://Olarila.com/forum/viewtopic.php?f=28&t=1703

good hack

[dfrank970]

Hi, I've got an ACER ASPIRE 5755-9401.

I've patched my DSDT with the Aspire 5750 patch from the website.

Is there any way to improve my DSDT in order to be full Aspire 5755?

thanks.

don Frank

Send me dfrank01’s MacBook Pro.zip

[Radu66]

I can get sound with voodoohda, but the volume is really low, and If i use "Gain" from settings I start to hear noise.

I experimented with my dsdt and applehda to get them working, last thing that happened was KP, and the best thing that I can get is

"Intel High Definition Audio: DeviceID:12(I suppose is the layout 12 from the dsdt) in System Informations.

I don't have any working applehda.kext so I modified one with different data and I got nothing.

I got everything I think to make it work:codec_dump.txt, codec_dump.txt.svg, codec_dump_dec (etc), device and vendor ids from Aida64, pin configs from voodoohda that I modified.

I need some assistance with this, because I don't know now if AppleHDA is not working because of the kext or dsdt, I want some basic functions with AppleHDA.

I am on Mavericks 10.9

Files.zip

[artur-pt]

@Radu66

hello

not easy mac os x and amd cpu...

only apply hdef device with layout 1 to applehda

http://Olarila.com/files/10.9/Audio/AppleHDA/ALC883/ALC883.zip

try this one



DSDT.aml.zip



good hack

[Radu66]

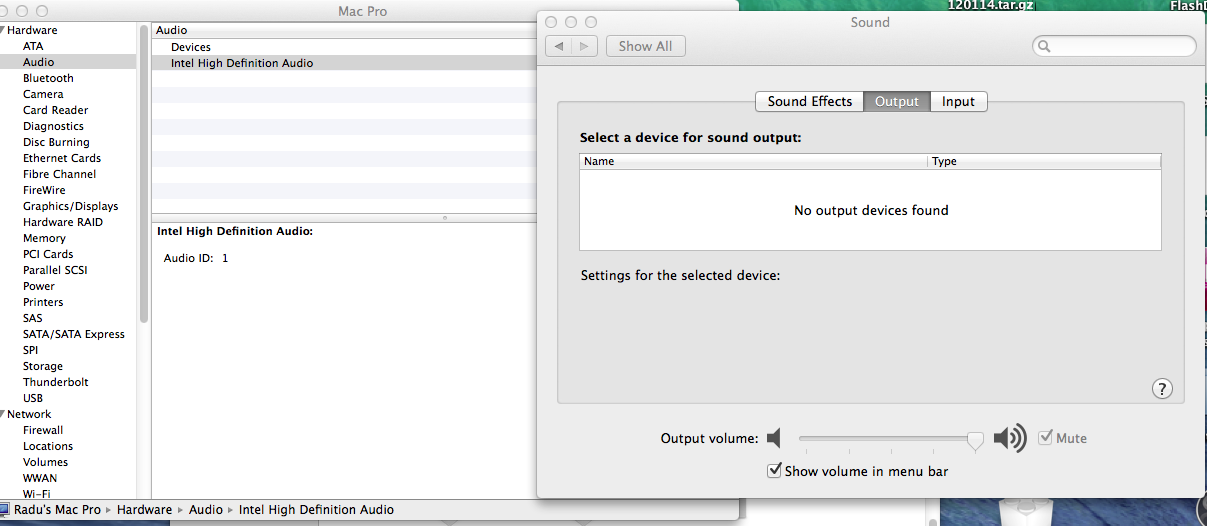

Now it looks like this, I can observe with "System Info" AppleHDA.kext not loaded.

Any suggestions?

[artur-pt]

hello

no suggestions..

only hdef device is applied for injecting the correct layout id for applehda..

now u need one it works with ur hardware and it load by the system ( try to speak with mirone from the staff is the expert in applehda )

good hack

[RWK]

Hi,

I have extracted and compiled DSDT from a Asus z87-k mobo. Problem is that I get 4 errors and I can't save it as an aml.

Is there any patch to get sleep working on this mobo?

Thanks..

dsdt.zip

Send me Mac Pro van Radj.zip

[Cango]

hi,

Asus P7P55 LX

maveriks 10.9.1 sleep mode problem.Thanks in advance

DSDT.aml.zip

[artur-pt]

@Cango

hello

try this one



DSDT.aml.zip



good hack

[Cango]

My dsdt 2 error not fix

P7P55LX (v.1202 Bios) Board desktop pc mavericks sleep problem help me please.

The system goes to sleep and wakes immediately.

Arşiv.zip

[artur-pt]

hello

there it is only without error



DSDT.aml.zip



and don't use the "beast" thing

nice try and good luck with it

good hack

[Mr MagOO]

Hello,

after two years digging in OSX and DSDT, i still got erratic wake after sleep (1/4 black screen) with 10.9.1.

I've got a pretty old mobo (P5Q deluxe) with a 8800gt that should match a MacPro 3.1.

Attached my current DSDT if a guru could see something i missed ...

thanks in advance.

DSDT.aml.zip

[artur-pt]

hello

for me is good .. is well edited dsdt..

it have the correct patches..

very nice job

good hack

[Mr MagOO]

Thank you for looking!

It think i could have a pb with double memory controllers : MCEH in original DSDT an MCHC (8086,2e20) discovered by OSX and renamed by me ...

[jason_266]

i have the laptop HP pavilion G6 1205sv

my motherboard is intel HM65 with intel core i5 2.39ghz

my specs

intel hd graphics 3000

ati 6470m

atheros 9285 wifi

intel idt 92hd81b1x audio

realtek 8102e/8102e fast ethernet controller

can anyone fix my dsdt because i don't know how to do.

and one patch for audio i need

[artur-pt]

hello

where it is ?

send the necessary files

look at first post

good hack
