Mojave / Catalina on GA-Z370 HD3 + i7-8700K / FULL DSDT Patch

[MaLd0n]

[ref]diamonddust[/ref], now i'm using a z390m gaming

https://Olarila.com/forum/viewtopic.php?f=45&t=8730

[diamonddust]

The Z370N wifi it's a little beast too but I can't sort wake up issue, is the Z370 HD3 it's the same?

[MaLd0n]

[ref]diamonddust[/ref], no, is perfect

[diamonddust]

Do you suggest to stay Z370N WIFI or move to Z370 HD3 or Z390 M Gaming

[MaLd0n]

[ref]diamonddust[/ref], 3 options is very good, what problems u have with sleep?

[diamonddust]

The Z370N WIFI was fairly easy to setup with Vanilla guide on reddit but I'm having wake up problem. It work once and than power cycle to double check and it hangs. With wake up by Power button sometimes I get black screen with LCD on or other time wake up back to desktop but mouse and key are frozen.

later this evening I'm going to wipe and start over with you OSX image so you know where I'm at.

[diamonddust]

This is after my clean Vanilla install, only added CHIPSET SERIES 10, 20 and 30 folder, your patched DSDT.aml, USB fix and hardware encoder guide. I haven't clean up the config.plist or the extra kexts.

First try sleep wake up and it froze black screen LCD on

System boot fast and very smooth

Send me Diamonddust.zip

origin.zip

[MaLd0n]

[ref]diamonddust[/ref], if u remove dsdt sleep work?

[diamonddust]

Without the dsdt no wakeup with black screen and LCD stay off.

[diamonddust]

MaLd0n

thanks for fixing my wakeup issue, your last patched DSDT is working. Wakeup from PWR Button and Keyboard. I don't know if the F5 bios helped too but will stick with that. You mention that in your Bios you enable intelHD Graphics and disable csm, is it right? what about XHCI Hand-Off and VT-d?

in Clover also change to:

IntelGFX 0x3E928086

ig-platform-id 0x3E920003

Different value but should be the same as the guide fro iMac 18.3?

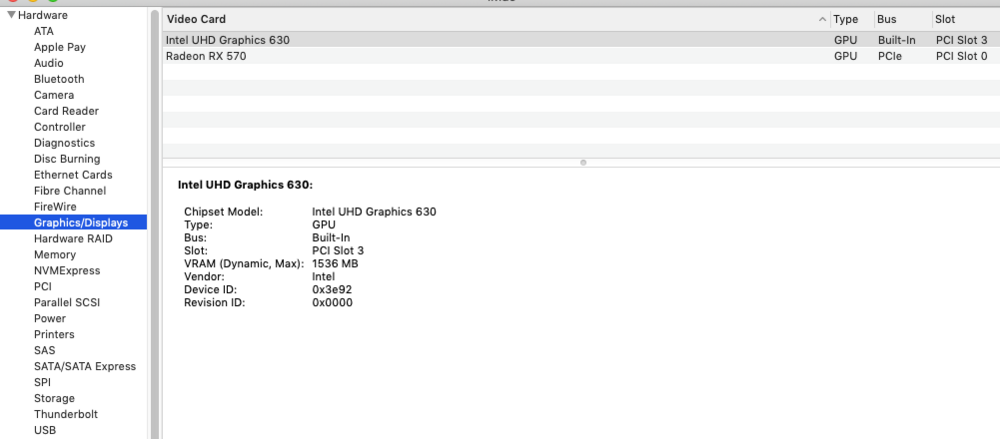

Notice that in System Report the Graphics/Display show the Intel 630 as well, wasn't there before.

And for USB I used the Hackintool USB Patch with SSDT-USBX.aml , SSDT-UIAC and USBPorts.kext



[MaLd0n]

[ref]diamonddust[/ref], use bios/uefi in default, just enable intelhdgraphics

the correct config intelhd don't appears here

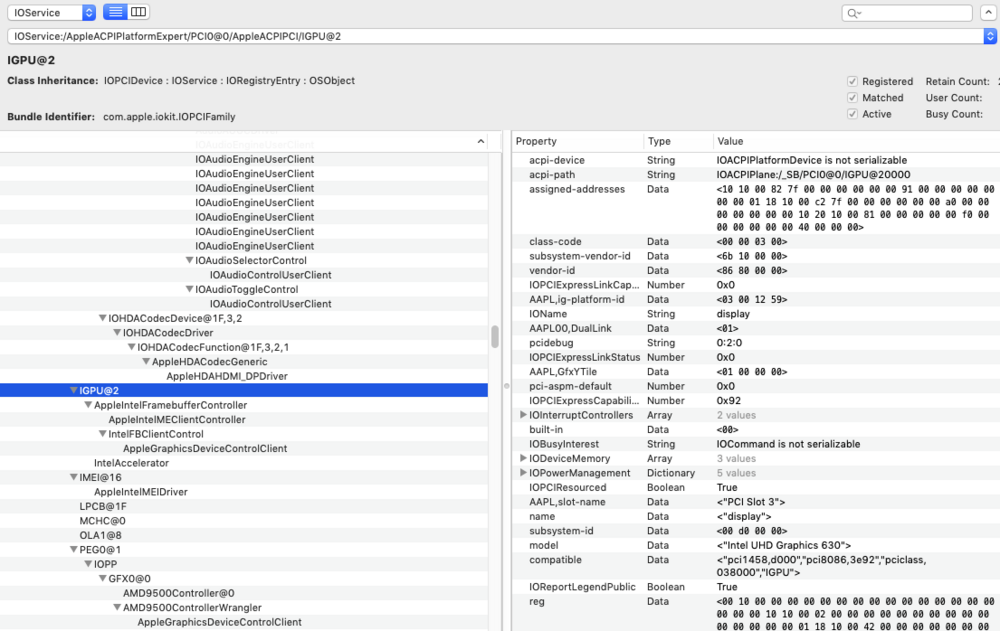

u see in ioreg just for hardware accel

[diamonddust]

MaLd0n ok went back to

IntelGFX 0x59128086

ig-platform-id 0x59120003

and Graphics/Display it's correct

Bios/UEFI is default and CSM disable and intelhdgraphics enable

[MaLd0n]

[ref]diamonddust[/ref],

[diamonddust]

MaLd0n one last question I forgot and than I will not bug you

For Hackintool USB patching it's suggest to edit config.plist and add the EHCI1, EHC2, XHCI and XHC1 like this:



should I remove them now that USB it's been fixed?

can I private sent you the boot verbose?

if it's ok with you and time it's ok will post a [Guide] for the GA Z370N Wifi

[MaLd0n]

[ref]diamonddust[/ref],

change GFX0 to IGPU
47465830
49475055

change HDAS to HDEF
48444153
48444546

change HECI to IMEI
48454349
494d4549

change SAT0 to SATA
53415430
53415441

change GLAN to GIGE
474c414e
47494745

[diamonddust]

got it cheers !

[jcmrdc]

Hello guys,

Greetings from Brazil! Where is the download link for the DSDT file? I've looked all over and I can't find it... Thanks for your help.

Jay Cee.

[erroruser]

you have to use the runme app an upload the zip file to this forum

http://Olarila.com/forum/viewtopic.php?f=19&t=1131

[EDV11]

Hello

I tried using your DSDT or EFI folder but it did not work for me. It hangs with this message

I have configured the BIOS with the recommended options.

My setup is:

Z370 HD3 BIOS F10

i5 8400

Sapphire R580 Nitro 8GB

16GB DDR4

If I use a generic EFI I can boot and everything works fine, but the USB are not working. Devices are only detected if they are connected at boot, but if I plug them off/on nothing happens.

I use Mojave 10.14.3. Has something changed lately with the DSDT?

Send me iMac-de-Eduardo.zip

Edited March 18, 2019 by Guest

[erroruser]

[ref]EDV11[/ref], you dont use other users dsdt you can block it in clover to boot back hit "O" then go to ACPI patching dsdt name change to BIOS.aml an you should be able to boot back on an you should use clover folders from here https://Olarila.com/files/Clover.Folder/CLOVER.SERIES.100.200.300.zip

for changing the dsdt to bios here is also a guide http://Olarila.com/forum/viewtopic.php?f=28&t=9303

Added in 3 minutes 26 seconds:

to run me app watch here

">

[EDV11]

Thanks. I went back to the EFI folder that allows me to boot up. I have added the Send Me file in the previous post

[MaLd0n]

[ref]EDV11[/ref], DSDT.aml.zip

[EDV11]

[ref]EDV11[/ref], DSDT.aml.zip



Thanks!

I've been testing it for some hours but I found that I have trouble with wake after sleep. The fans start spinning but there is no image. It responds to ping from a different computer, but I can't log through screen sharing and I have to force power off and restart.

[MaLd0n]

[ref]EDV11[/ref], strange

[EDV11]

I do have the Lilu.kext and WhateverGreen.kext in Other folder, boot argument with shikigva=40 and nothing in Graphics
