Hackintosh leNovo-14IB-710

[Full-R]

Fully working Lenovo 710-14IKB with Intel WIFI, perfect Realtek sound and JBL, tuned HD620.

All success instead of a touchscreen(device detected and looks possible to use but I have insufficient time to understand what with 7501 and GPIO I2C bus).

If somebody knows how to fix - please provide a solution.

I'd like this device because it have less weight than MPB and very powerfull battery.



[===== Links to EFI folder =====]

1: https://sprend.com/download?C=c16a15b1e18b480d9ef0ae51fa84a290

2: https://wdfiles.ru/O980

[========================]



Please check you SSDT because this Lenovo have some model factory modifications.

Also you can run Installer system you'd like from 11.7.10 to Sequoia maked by create install media to USB stick just only adding path to BaseSystem.dmg



[========================]



Please do not touch fastboot UEFI option and trust keys in BIOS.

It broke display graphics output(if stripes or something like that - switch of inner display connector on side of mother board[use a peace of paper to prevent circuit], use micro HDMI to external display, make reboot from Windows using keep-shift + power reset, enter into BIOS from Windows recovery variants and reset all, next power down and return integrated display connector to motherboard nest again). -> Enjoy(display and cable not broken usually).

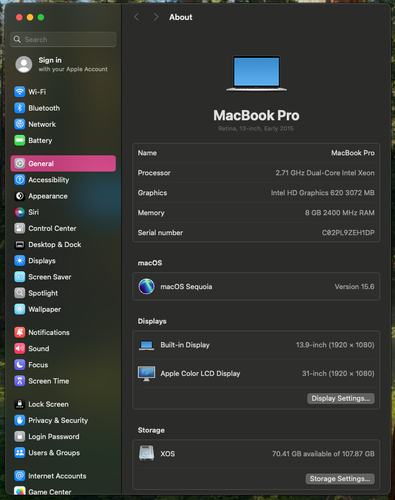

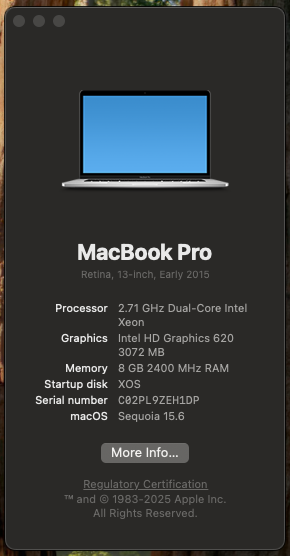

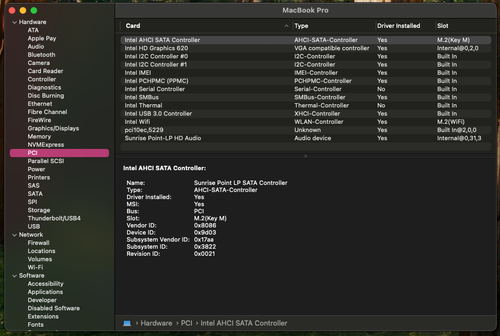

Screenshots-NovoBook-14IKB.zip

[Full-R]

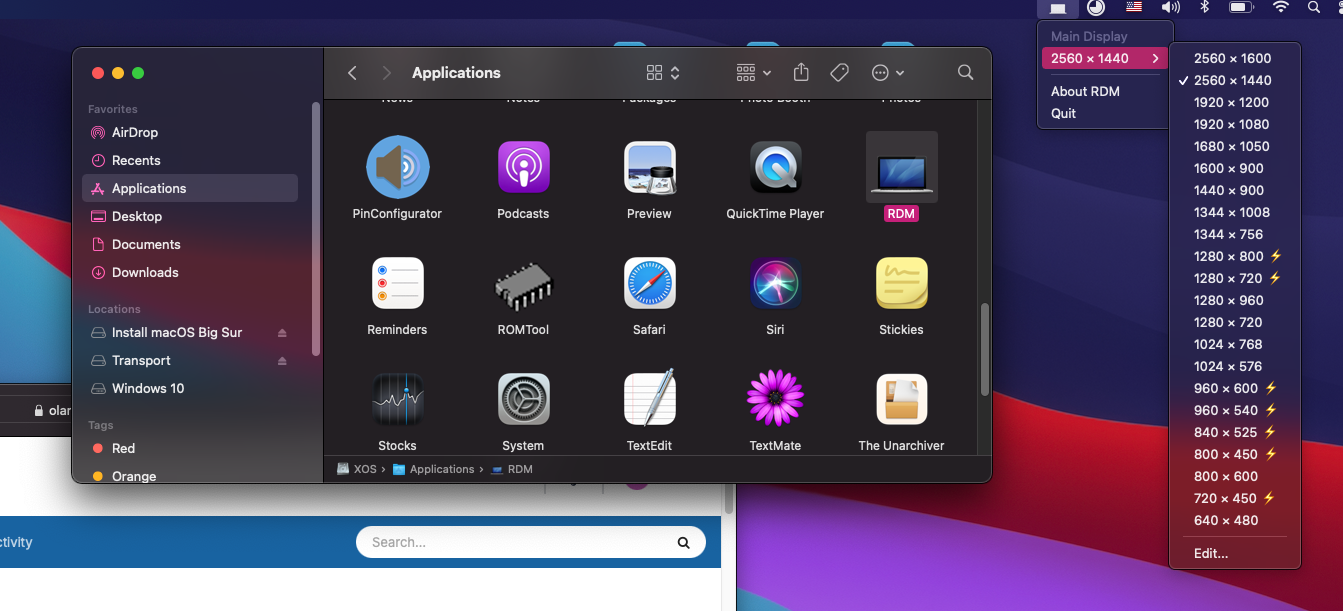

Found an application RDM making resolution of screen incredible for design, schematic and architect without modification of EDID, working after reboot and quality is super like a retina. Will try to make touchscreen working(something strange with a display vendor).





Edited July 11, 2025 by Full-R

[Full-R]

Carefully 'll come to Tahoe ...

All works perfect instead of gyroscope sensor and touchscreen we don't know how to paired with intel and i2c gpio bus for now.

Graphics allows from system update to look at video wallpaper without any steps to install Metal and change anything but we can't use OpenCore GUI deletes all your configs and kexts(by the way package installer and KDK workaround switched off).

Small trouble I'd like to solve later is a hiding of all USB bus devices. Looks nothing plugged but works all ports after out of sleep and card reader looks into the void but works 🙂 ... strange shit(put SDCARD and look it's mounted successful).

Any enthusiasm to help me?

Wifi and Bluetooth works strange to but works. System indicators says no any WIFI hardware but using HeliPort all works.

YogaSMC seems not needed because nothing helpful on the look.







[===============================]

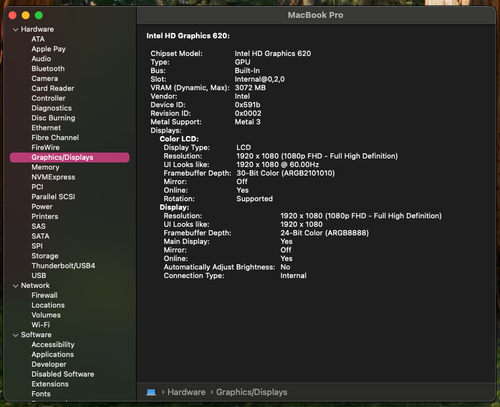

Graphics works better(apply a merging IntelHD connectors, pipes and buffers settings from 520+620+630+P630 and attach it to IrisPlus 655). Cool: works self by self after boot and system upgrade with acceleration and more dedicated memory.

To make that for fun CPU i5 delivered as unknown old XEON without integrated graphics.



[==============================]

Quick lazy *** jumps from BigSur to Sequoia ...

Edited August 1, 2025 by Full-R
