c.link86

got it but didn't use weg options.... it maybe not supported here but he was the solution I used ATI FakeID = 0x68E01002 FBName = Cedar InjectATI = True VideoPorts = 3 at first it caused color problems flashing colors but using a paid app temporarly (SwitchResX trial) I switched the color mode from billions to millions which fixed the issue plus i got full hwa + underscan so i got the desktop to fit unlike my nvidia GT730 thanks for the help

tried that just now didn't work (currently using vga) edit: can now boot into hdmi still no HWA something with SIP prevented boot i changed 0x28 to i think 0x2e7 (allow unapproved kext) also changed shikigva=60 to 80 i have deinit on when macos loaded it said "a kext prevented macos to boot all 3rd party kext are now disabled" so we are getting somewhere atleast

no dice still black screens/reboots tried 16 and 80

no dice kept blackscreening/rebooting but doing shikigva=128 boots w/o accel i checked the kp logs and found this line standing out panic(cpu 0 caller 0xffffff7f976afdcf): WhateverGreen: shiki @ Hardware DRM decoder cannot be used with custom board or whitelist

what are the correct properties? for weg?

so I do all this since my processor is a has well -Haswell IntelGFX 0x04128086 Ig-platform-id 0x04120004 Check InjectIntel <----- (wouldn't I do inject ATI instead cause I have a radeon?) shikigva=60

here's my run me crap can't seem to post it on here... my link on zippy share https://www95.zippyshare.com/v/FWnqpvJl/file.html

hello I'm trying to hackintosh a dell Optiplex 3020 (most specs in profile) nearly everything works except Graphics an older Radeon (HD5450) so again im stuck on HS Till i upgrade to a Metal 2 complient card but i'm still having issues with hw accel I'll add the run me tomorrow cause it's late now VGA works oddly w/o HW accel but the main problem lies in the HDMI It'll boot into clover but is a black screen after that (windows seems to have the same issue til i "activate" hdmi in catalyst by first entering windows with vga) if you need more info it'll have to wait til tomorrow

hi so I am back on 10.13.6 with my Nvidia GT 730 I already installed the web drivers and set nvda_drv=1 boot flag and rebooted but my display settings show an overscan checkbox (unchecking it brings it to 4:3 ratio, and leaving it alone means the menu bar is cut off) if I were to use my IGPU (Intel HD 530) with the correct settings the under scan slider appears and I can shrink the desktop to a good ratio to where my menu bar shows here I am scratching my head trying to shrink my desktop so my menu bar will show

[ref]MaLd0n[/ref], do you happen to have just a copy of config 2? i REALLY don't want to redownload the image just for that file

cant even start the installer but i did dump my DSDT via clover on my laptop an ivybridge specs are intel I3-3300M 6GB ram Intel HD 4000M as i said i cannot even boot the installer thus i cant use runme.app the config.plist is the unmodified one from the 5/6/7 mobile chipset folder aml's.zip

hi I'm suppose to recieve a Nvidia geforce gt 730 (2gb) today and was wondering if the nvidia web drivers on Mojave supports it? this is the spec sheet from the manufacturer (EVGA) https://www.evga.com/products/specs/gpu.aspx?pn=740e47c7-b9de-4c5c-b8ca-f98dbc5e3293

tried that I KP'd also is there a program (free perfered) to read/extract files from apfs? from windows? Added in 12 minutes 22 seconds: extracted the .panic to my window partition here is the contents mind you it worked before those 2 kext Anonymous UUID: 20D97A6C-08A7-13D6-BDEE-2AC1C78A9A95 Sat Apr 6 07:02:00 2019 *** Panic Report *** panic(cpu 3 caller 0xffffff7f8bbe85bf): assertmsg@/Library/Caches/com.apple.xbs/Sources/GPUDriversIntel/GPUDriversIntel-12.8.38/Common/IONDRV/Intel/SKL/AppleIntelFramebuffer/AppleIntelController.cpp:26735 Backtrace (CPU 3), Frame : Return Address 0xffffff8cef913a90 : 0xffffff800a3af82d 0xffffff8cef913ae0 : 0xffffff800a4eb795 0xffffff8cef913b20 : 0xffffff800a4dcf4a 0xffffff8cef913b90 : 0xffffff800a35cae0 0xffffff8cef913bb0 : 0xffffff800a3af247 0xffffff8cef913cd0 : 0xffffff800a3af093 0xffffff8cef913d40 : 0xffffff7f8bbe85bf 0xffffff8cef913db0 : 0xffffff7f8bbe55b0 0xffffff8cef913e40 : 0xffffff800aa307ab 0xffffff8cef913e80 : 0xffffff800aa30465 0xffffff8cef913f00 : 0xffffff800aa2fa27 0xffffff8cef913f50 : 0xffffff800aa31516 0xffffff8cef913fa0 : 0xffffff800a35c0ce Kernel Extensions in backtrace: com.apple.driver.AppleIntelSKLGraphicsFramebuffer(12.0.8)[D6D154D7-65C4-366B-8880-9E9335A20577]@0xffffff7f8bbbd000->0xffffff7f8bdbefff dependency: com.apple.iokit.IOPCIFamily(2.9)[54C3F778-4B95-3093-A51D-D761607C96CB]@0xffffff7f8ac95000 dependency: com.apple.iokit.IOACPIFamily(1.4)[7706F483-87AE-3F44-BCCA-09C156F4E031]@0xffffff7f8b282000 dependency: com.apple.iokit.IOAcceleratorFamily2(404.8)[2B970BDA-3F88-31F1-9A04-D52B72F2D784]@0xffffff7f8bb08000 dependency: com.apple.iokit.IOReportFamily(47)[86DDD149-2800-3D3E-9914-3556918455F1]@0xffffff7f8b7fa000 dependency: com.apple.AppleGraphicsDeviceControl(3.30.14)[61BA5741-B8B8-32F6-A4D1-051861B0294D]@0xffffff7f8b76d000 dependency: com.apple.iokit.IOGraphicsFamily(530.60)[9E233908-09E1-332E-AE9B-CB27D514707B]@0xffffff7f8b427000 BSD process name corresponding to current thread: kernel_task Boot args: dart=0 debug=0x100 -v -ath9565 Mac OS version: 18E226 Kernel version: Darwin Kernel Version 18.5.0: Mon Mar 11 20:40:32 PDT 2019; root:xnu-4903.251.3~3/RELEASE_X86_64 Kernel UUID: 4170BF94-38B6-364F-A1B0-2F7C2C30F9A9 Kernel slide: 0x000000000a000000 Kernel text base: 0xffffff800a200000 __HIB text base: 0xffffff800a100000 System model name: iMac17,1 (Mac-B809C3757DA9BB8D) System uptime in nanoseconds: 42898131914 last loaded kext at 42648012957: com.apple.iokit.IOBluetoothFamily 6.0.11f4 (addr 0xffffff7f8c6ee000, size 1011712) loaded kexts: com.apple.driver.pmtelemetry 1 com.apple.Dont_Steal_Mac_OS_X 7.0.0 com.apple.driver.AppleIntelSKLGraphics 12.0.8 com.apple.driver.AppleFIVRDriver 4.1.0 com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0 com.apple.driver.AppleSMCLMU 212 com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0 com.apple.driver.AppleIntelPCHPMC 2.0.1 com.apple.driver.AppleIntelSKLGraphicsFramebuffer 12.0.8 com.apple.filesystems.apfs 945.250.134 com.apple.driver.AppleFileSystemDriver 3.0.1 com.apple.driver.AppleVirtIO 2.1.3 com.apple.filesystems.hfs.kext 407.200.4 com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1 com.apple.BootCache 40 com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0 com.apple.AppleSystemPolicy 1.0 com.apple.driver.AppleAHCIPort 329.200.2 com.apple.driver.AppleHPET 1.8 com.apple.driver.AppleRTC 2.0 com.apple.driver.AppleBacklight 170.12.11 com.apple.driver.AppleACPIButtons 6.1 com.apple.driver.AppleSMBIOS 2.1 com.apple.driver.AppleAPIC 1.7 com.apple.nke.applicationfirewall 190 com.apple.security.TMSafetyNet 8 com.apple.iokit.IOBluetoothFamily 6.0.11f4 com.apple.driver.AppleHDAController 282.54 com.apple.iokit.IOHDAFamily 282.54 com.apple.iokit.IOAudioFamily 206.5 com.apple.vecLib.kext 1.2.0 com.apple.driver.AppleSMBusPCI 1.0.14d1 com.apple.AppleGPUWrangler 3.30.14 com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0 com.apple.driver.IOPlatformPluginLegacy 1.0.0 com.apple.driver.X86PlatformPlugin 1.0.0 com.apple.driver.IOPlatformPluginFamily 6.0.0d8 com.apple.AppleGraphicsDeviceControl 3.30.14 com.apple.iokit.IOAcceleratorFamily2 404.8 com.apple.iokit.IOSurface 255.4.2 com.apple.driver.AppleXsanScheme 3 com.apple.iokit.IOAHCIBlockStorage 301.250.5 com.apple.iokit.IOSerialFamily 11 com.apple.filesystems.hfs.encodings.kext 1 com.apple.iokit.IOAHCIFamily 288 com.apple.driver.AppleIntelLpssGspi 3.0.60 com.apple.driver.usb.AppleUSBXHCIPCI 1.2 com.apple.driver.usb.AppleUSBXHCI 1.2 com.apple.driver.usb.AppleUSBHostPacketFilter 1.0 com.apple.iokit.IOUSBFamily 900.4.2 com.apple.driver.AppleBacklightExpert 1.1.0 com.apple.iokit.IONDRVSupport 530.51 com.apple.iokit.IOGraphicsFamily 530.60 com.apple.driver.AppleEFINVRAM 2.1 com.apple.driver.AppleEFIRuntime 2.1 com.apple.iokit.IOHIDFamily 2.0.0 com.apple.security.quarantine 3 com.apple.security.sandbox 300.0 com.apple.kext.AppleMatch 1.0.0d1 com.apple.driver.DiskImages 493.0.0 com.apple.driver.AppleFDEKeyStore 28.30 com.apple.driver.AppleEffaceableStorage 1.0 com.apple.driver.AppleKeyStore 2 com.apple.driver.AppleUSBTDM 456.250.6 com.apple.driver.AppleMobileFileIntegrity 1.0.5 com.apple.iokit.IOUSBMassStorageDriver 145.200.2 com.apple.iokit.IOSCSIBlockCommandsDevice 408.250.3 com.apple.iokit.IOSCSIArchitectureModelFamily 408.250.3 com.apple.iokit.IOStorageFamily 2.1 com.apple.kext.CoreTrust 1 com.apple.driver.AppleCredentialManager 1.0 com.apple.driver.KernelRelayHost 1 com.apple.iokit.IOUSBHostFamily 1.2 com.apple.driver.usb.AppleUSBCommon 1.0 com.apple.driver.AppleBusPowerController 1.0 com.apple.driver.AppleSEPManager 1.0.1 com.apple.driver.IOSlaveProcessor 1 com.apple.iokit.IOReportFamily 47 com.apple.iokit.IOTimeSyncFamily 740.2 com.apple.iokit.IONetworkingFamily 3.4 com.apple.driver.AppleACPIPlatform 6.1 com.apple.driver.AppleSMC 3.1.9 com.apple.iokit.IOPCIFamily 2.9 com.apple.iokit.IOACPIFamily 1.4 com.apple.kec.pthread 1 com.apple.kec.Libm 1 com.apple.kec.corecrypto 1.0 EOF

hi i'm trying to make my qualcomm QCA9565 wifi to work on 10.14.4 my desktop is too far away for a hard wire connection i had no problem on HS using the wifi but Mojave is different what kext do i need to install and where to get my qca9565 working?

after install a patched AppleHDA (via AppleHDA patcher) in /S/L/E and layout-id 5 sound comes through rear speaker jack so all's good thank guys

still no sound though it booted up w/ video

no good KP's but the text is so fast I can't pinpoint the issue Added in 4 minutes 43 seconds: oh i found the panic log this seems to be the issue *** Panic Report *** panic(cpu 1 caller 0xffffff7f8e996c25): assertmsg@/Library/Caches/com.apple.xbs/Sources/GPUDriversIntel/GPUDriversIntel-12.4.7.2/Common/IONDRV/Intel/SKL/AppleIntelFramebuffer/AppleIntelController.cpp:26588

Hi i managed to install Mojave on my dell inspiron 3650 after sone configuration i managed to get video (Intel HD 530) to work but no sound through hdmi specs on profile runme attached (note Config 2 was pulled off rehabman's github for my video IGPU (that one runs the video but no sound) config 3 was created by Hackintool config 1 should be the one i booted at first (video didn't work) if you can figure out the issue much appeciated Send me Chriss-iMac.zip

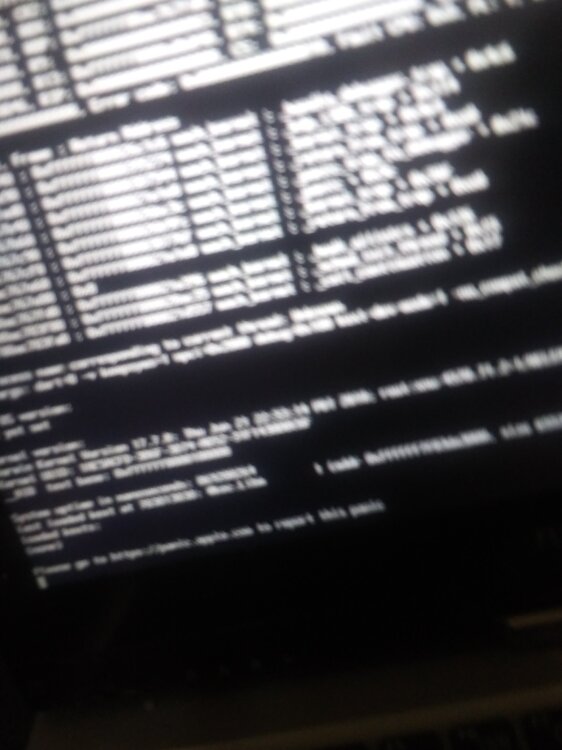

camera sucks ik Added in 2 minutes 46 seconds: cant I get the kp data off the usb drive like i can on the hackintosh itself? Added in 33 minutes 49 seconds: what I do see is a failed clut not a kext failedimage not a kext also mach kernel errors like _handler debugger trap*0x4c kdp i386 trap*0x114 kernel trap * 0x4e4 then cpu caller 0

hi so i have my lifebook T732 and am trying to install high sierra (guess mojave won't boot installer at all) anyways i managed tto get through the inital boot only to be greeted by a KP shown bellow used the Olarila image and config_2.plist nothing else modified yet

ok so i got video working but not audio doesn't detect output and i have AppleALC in the Kext\other folder I'm glad I got half of it done though (used Rehabman's config plist for my processor that's how i got video to work)

nope it KP'd what's the next step (using my USB to boot the HDD) edit looking in /Library/Logs/DiagnosticReports (where KP logs are stored this is the last bit of diagonstic data before model info Anonymous UUID: A50B6C0A-792B-0030-58FB-BDC2217F1196 Mon Nov 5 23:29:45 2018 *** Panic Report *** panic(cpu 0 caller 0xffffff7f82c15c85): assertmsg@/Library/Caches/com.apple.xbs/Sources/GPUDriversIntel/GPUDriversIntel-12.2.17/Common/IONDRV/Intel/SKL/AppleIntelFramebuffer/AppleIntelController.cpp:26588 Backtrace (CPU 0), Frame : Return Address 0xffffff80dbb0baa0 : 0xffffff80003aca9d mach_kernel : _handle_debugger_trap + 0x48d 0xffffff80dbb0baf0 : 0xffffff80004e6893 mach_kernel : _kdp_i386_trap + 0x153 0xffffff80dbb0bb30 : 0xffffff80004d82ba mach_kernel : _kernel_trap + 0x4fa 0xffffff80dbb0bba0 : 0xffffff8000359ca0 mach_kernel : _return_from_trap + 0xe0 0xffffff80dbb0bbc0 : 0xffffff80003ac4b7 mach_kernel : _panic_trap_to_debugger + 0x197 0xffffff80dbb0bce0 : 0xffffff80003ac303 mach_kernel : _panic + 0x63 0xffffff80dbb0bd50 : 0xffffff7f82c15c85 com.apple.driver.AppleIntelSKLGraphicsFramebuffer : __ZN31AppleIntelFramebufferController13FBMemMgr_InitEv + 0x197 0xffffff80dbb0bdb0 : 0xffffff7f82c12c6f com.apple.driver.AppleIntelSKLGraphicsFramebuffer : __ZN31AppleIntelFramebufferController5startEP9IOService + 0xce1 0xffffff80dbb0be40 : 0xffffff8000a2c22b mach_kernel : __ZN9IOService14startCandidateEPS_ + 0x6b 0xffffff80dbb0be80 : 0xffffff8000a2bf71 mach_kernel : __ZN9IOService15probeCandidatesEP12OSOrderedSet + 0x911 0xffffff80dbb0bf00 : 0xffffff8000a2b4c7 mach_kernel : __ZN9IOService14doServiceMatchEj + 0x2c7 0xffffff80dbb0bf50 : 0xffffff8000a2cf96 mach_kernel : __ZN15_IOConfigThread4mainEPvi + 0x1a6 0xffffff80dbb0bfa0 : 0xffffff80003590ce mach_kernel : _call_continuation + 0x2e Kernel Extensions in backtrace: com.apple.driver.AppleIntelSKLGraphicsFramebuffer(12.0.2)[ED111957-D1C9-3968-B529-14C169701B9A]@0xffffff7f82beb000->0xffffff7f82dfdfff dependency: com.apple.iokit.IOPCIFamily(2.9)[7DE930EC-AB73-3F5A-9D38-94D5EE90D197]@0xffffff7f80c95000 dependency: com.apple.iokit.IOACPIFamily(1.4)[DC1D9290-BFFC-309B-8529-CCB7AB322B1C]@0xffffff7f8123f000 dependency: com.apple.iokit.IOAcceleratorFamily2(400.27)[5BC3E111-E908-36E8-9AFB-A39BD0D561D5]@0xffffff7f82b47000 dependency: com.apple.iokit.IOReportFamily(47)[6A9FF3E1-E644-3F33-8A44-8B51C44AA67C]@0xffffff7f817a9000 dependency: com.apple.AppleGraphicsDeviceControl(3.25.6)[53E6D711-F2EF-35EE-8974-7BDCE4281C83]@0xffffff7f81733000 dependency: com.apple.iokit.IOGraphicsFamily(530.12)[9D1E5FA7-267E-397E-9C91-1751221A05CF]@0xffffff7f8141c000 BSD process name corresponding to current thread: kernel_task Boot args: dart=0 -no_compat_check -v keepsyms=1 debug=0x100 kext-dev-mode=1 -disablegfxfirmware Added in 26 minutes 9 seconds: it appears to be related to the gfx

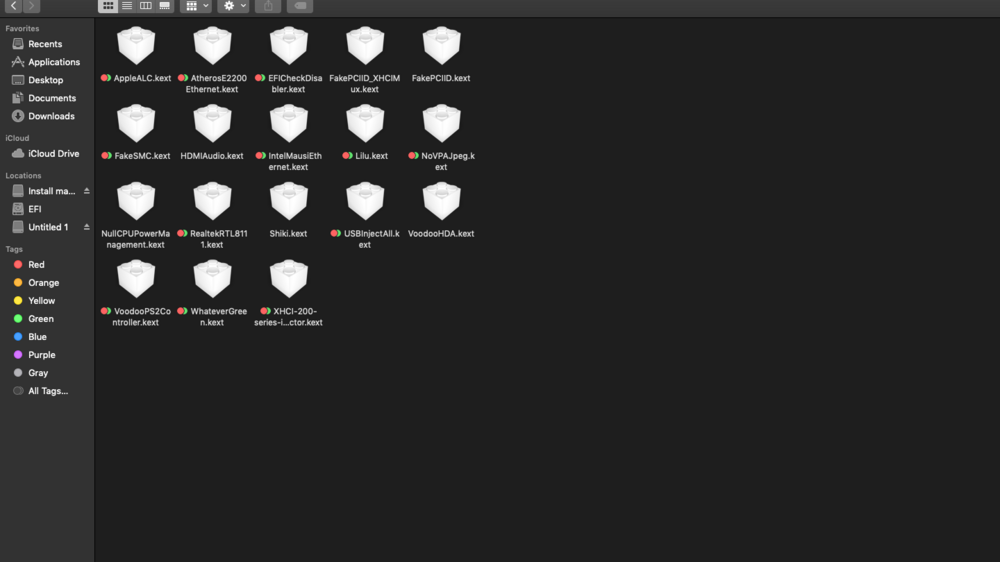

sorry haven't been on Mojave for a while the config.plist you provided KP'd I have enclosed a config.plist which halfway works with the Problem for gfx and HDMI audio (shows 7MB VRAM and no audio) used a clean Mojave installer from Mac store https://www104.zippyshare.com/v/nelymxQM/file.html Added in 3 minutes 50 seconds: and here is my kext

so I have my DELL hackintosh (10.14) hooked up to my TV via HDMI my understanding/overscan is off to the point that the title menu bar is not visible I used a shell script for high Sierra which works sadly it doesn't work on Mojave here's why... in the script it requires you to change to a different resolution temporarily to calibrate with your monitor/tv the display setting only shows 1 resolution (1920X1080) High Sierra showed 3 or 4 also the advanced menu won't activate (holding left Alt/Option) so the hidden resolutions are not accessible any way to change understanding in Mojave to fit everything on my TV?

so I FINALLY managed to install Mojave (your clover folder is missing APFS.efi preventing booting btw) anyways I haven't rebooted yet but have made a send_me.zip enclosed in this post is the said file I will reboot and report back any changes edit I hit a roadblock the Mojave HD install won't boot (KP but the text goes by super fast so I can't get a snapshot) but the USB will boot the HDD just fine Graphics seem to work too the kicker is the clover on the HDD is a 1:1 copy of the USB clover efi config (Kext and all) so it makes no sense that the HDD fails to boot but USB does Added in 49 minutes 30 seconds: I uploaded my refi folder for reference https://www89.zippyshare.com/v/c64Gbx1b/file.html send_me.zip
