petriccions

OS: Catalina 10.15.3 CPU: Core i5-6500 RAM: 8GB DDR4 GPU: Radeon RX580 MB: MSI B150 Gaming M3 Should I modify something? It's been a while I switched from Clover to OC. Thank you in advance Mald0n http://s000.tinyupload.com/index.php?file_id=43711661852450519885

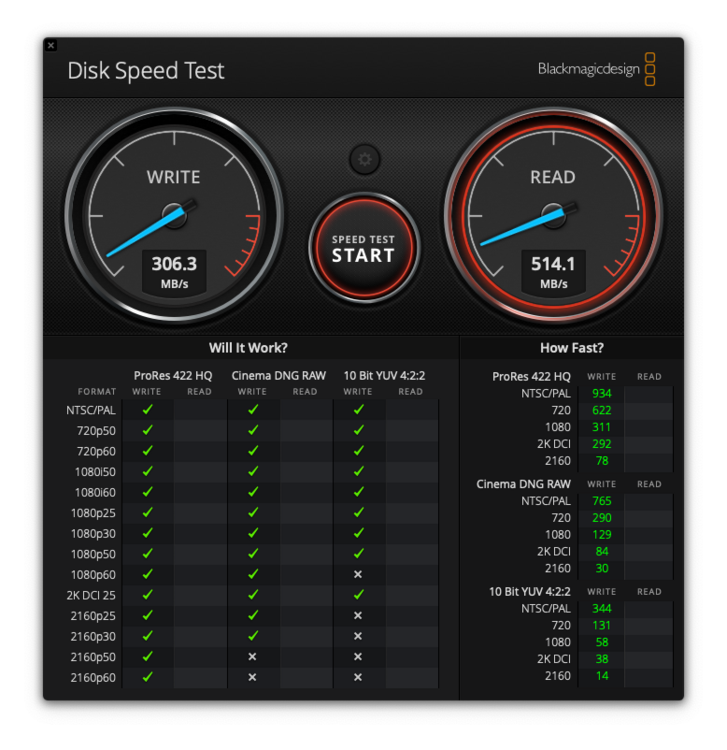

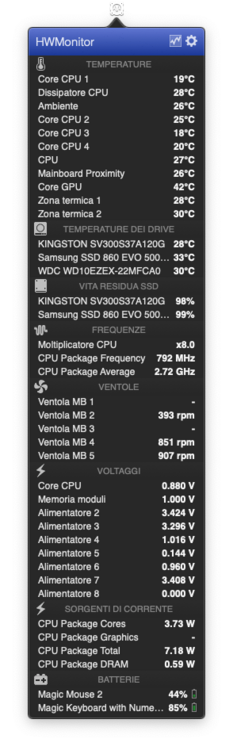

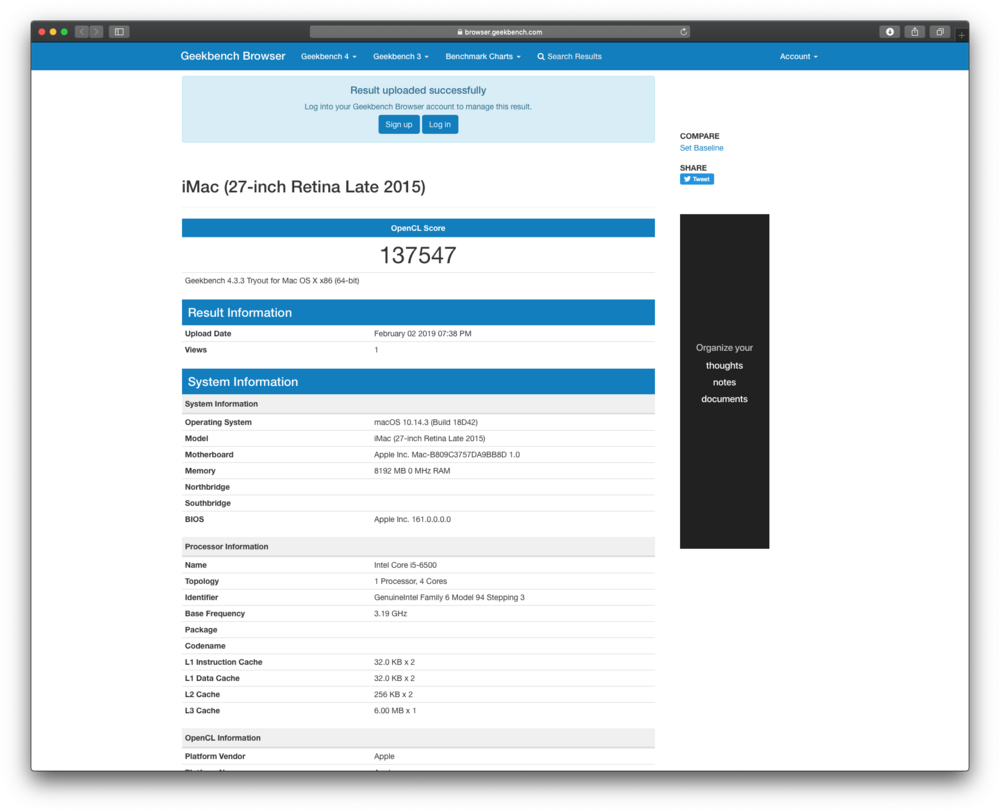

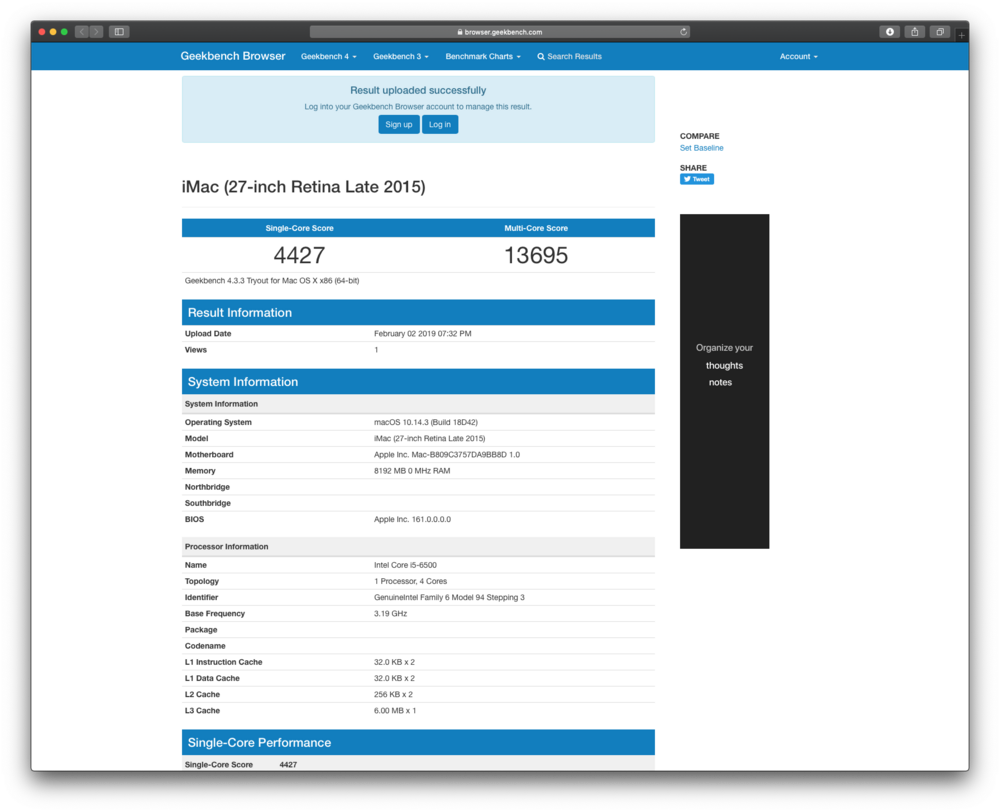

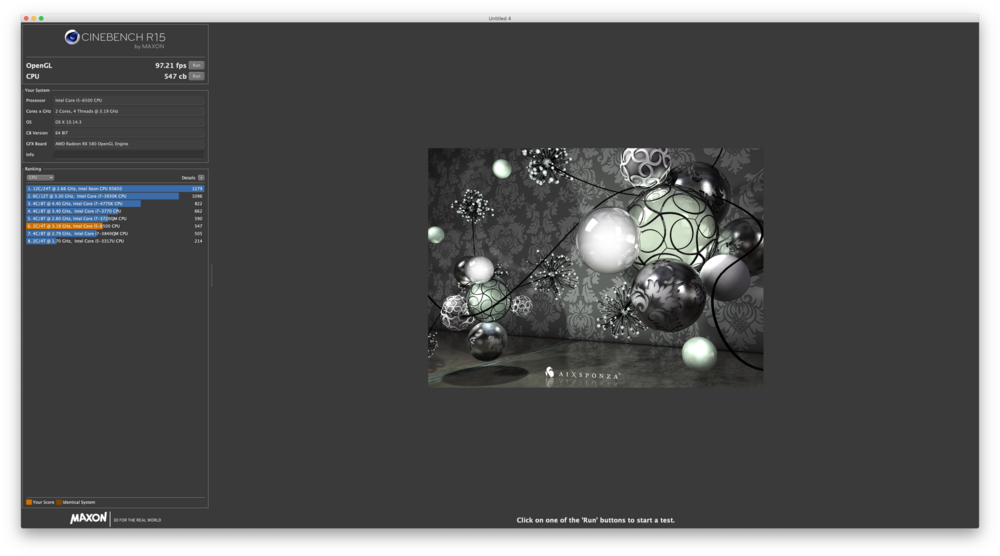

First of all, I would like to thank @Mald0n for patience and DSDT and @onemanosx for the inspiring post. I am currently on 10.14.3 with no known issues. I have the following hardware: 1. MSI B150 Gaming M3 motherboard 2. 8GB 2133MHz RAM 3. I5-6500 Sky Lake CPU 4. Sapphire RX580 8GB GPU 5. 512GB SSD as bootable device I used a Vanilla installation. 1. Graphics https://github.com/acidanthera/WhateverGreen https://github.com/acidanthera/Lilu a. Radeon RX580 – works out of the box with whatevergreen and lilu kexts b. UHD 630 I just haven't tried using it but should work with fakeid and ig-platform-id in clover 2. USB ports I first used usbinjectall.kext, the limit ports kext to patch and ioreg. Modified my ssdt and now USB ports are mapped and work without kext. 3. PCIe Wifi Card Bought this one, works oob. https://www.amazon.it/Bluetooth-BCM943602CS-Hackintosh-aeroportuali-hands-off/dp/B00MBP25UK/ref=sr_1_1?ie=UTF8&qid=1549139212&sr=8-1&keywords=bluetooth+hackintosh These is my clover efi (you'll find it in the attached files) with the essential kexts So here are some benchmarks HwMonitor properly works This is the ssd I used and its speed CLOVER.zip

Can I just replace the old one in the ACPI folder or do I have to do something else?

Hi Maldon! My Hack is working smoothly! In this time I upgraded gpu(rx 580 gb) and added this module BCM943602CS to let my wifi e bt work. I just wanted to know if I should change something on my DSDT or do I have to patch it(if yes, how?) When I shut it down, I have black screen with white strings for seconds before it shut down. is it normal? Thanks in advance. Send me iMac-di-Fabio.fritz.box.zip

do i need a ssdt? i dont have one in your clover folder

what does it mean???

it's GPU problem, I suppose. I'm using the IGPU from days and never had a problem. Updated to Mojave GM today. Still everything works(IGPU). If I use r9 380x(well detected by the os), It freeze in 20/30min

it also happens with hdmi, so it's not cable related. something in power managment i suppose

nope. i tried hdmi cable for an hour and nothing freezed. 15 min with dp-mini dp cable, was listening to some music on spotify and coding in atom, audio in background working and video freezed. it happens periodically

i tried with that boot args, but nothing. system works normally and sometimes it freezes. i think this is power management related

do i need this boot arg -raddvi to use correctly dvi? maybe this was the problem

24 hours of clear usage, and It happened again. While I was browsing it freezes the screen(audio in background working) and all I can do is restart.

it was starting an old clover version of another connectes hdd THANK YOU so much, everything is perfect now

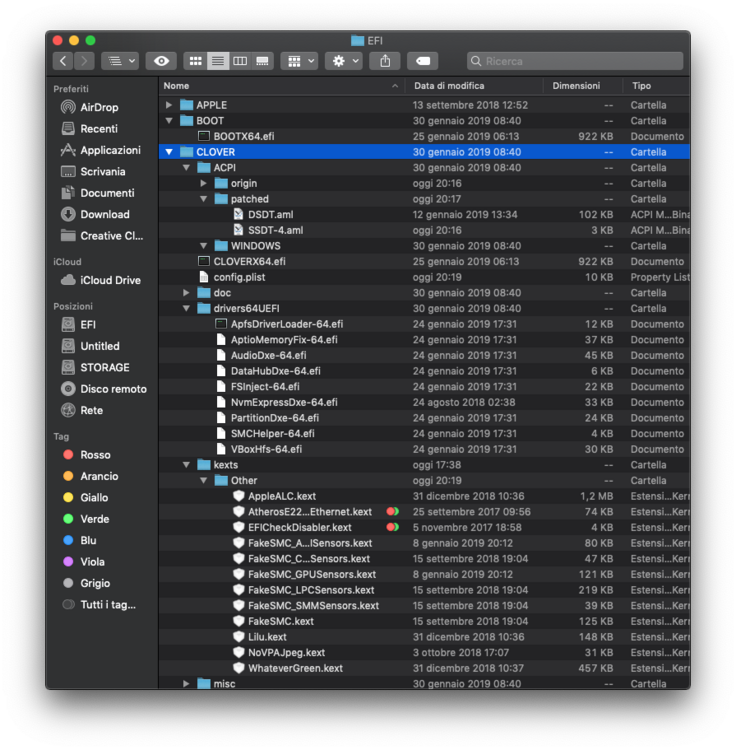

when I do a clean install, this is what I can find in the efi partition of the ssd. then I install clover and just copy the clover folder from the usb.

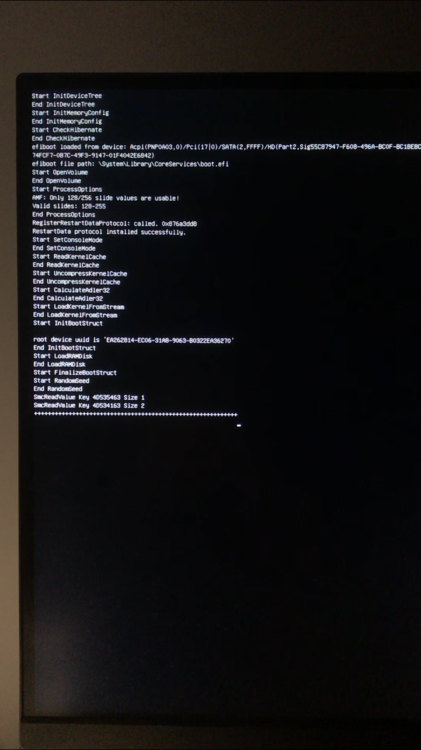

this is what i get when i try to boot from ssd clover(followed step by step the guide) Added in 13 minutes 22 seconds: what i noticed is that when i try to boot from clover on ssd(AND FAIL) is because it doesnt do screen related commands.

everything looks good, except for audio not working. If I boot from usb, it starts. I copied the efi usb folder on the efi ssd folder as in you can see in the pic. if I start from ssd clover, without usb inserted, it doesn't boot. what am I doing wrong?

i’m just having an issue but can’t get what’s the cause. while i’m using macOS normally, it randomly freezes the screen with the windows, so that i can only move mouse without clicking anything and i just have to reboot. any suggestions?

here it is Send me Fabios-iMac.fritz.box.zip

only this? Fabio’s iMac.zip

Hi everybody, I successfully installed MacOS High Sierra 10.13.6 on my ssd 860 EVO. Everything works fine; the only thing I miss is a properly working CPU & Graphics PowerManagement with a patched dsdt. Thanks in advice.
