Sleep issue

User avatar
MaLd0n
Site Admin
Site Admin
Posts: 17402
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

Sleep issue

Post by MaLd0n »

sanyaaahtconex, use hackintool, Displays tab
--Donations via PayPal [External Link Removed for Guests] :guitar

--Problems with Paypal? Check Here [Local Link Removed for Guests] :guitar

--Useful Links [Local Link Removed for Guests] :guitar

--Olarila Hackintosh Builds [Local Link Removed for Guests] :guitar

--Donated? Send me one Private Message
User avatar
tbrautaset
Posts: 13
Joined: 06 Aug 2017, 21:50
CPU: Intel® i7-7700HQ CPU @ 2.80GHz
Motherboard: MSI GE72VR 7RF ApacheP MS-179B
GPU: Intel HD Graphics 630

Sleep issue

Post by tbrautaset »

Sleep doesn't work, goes in and out of hibernation all the time, nor does bluetooth because of error in config.plist, kext ?

Bluetooth works in Mojave. Incredibly slow boot during startup again error in config.plist, kext ?


Any help would be greatly appreciated. Send me with your config2.plist booted.



BIOS Version:E179BIMS.312 - 03/15/2018
Realease BIOS for WU & Update CPU microcode 0x84 for Intel-SA-00088 (Meltdown & Spectre) speculative execution side-channel vulnerabilities.

EC firmware Version:179BEMS1.108 - 11/03/2017
ME Firmware Version:11.8.50.3425

BIOS Settings : Loaded Optimized Defaults -->
- XHCI Hand-Off enabled, Attempt Secure Boot disabled, Fast Boot disabled, ERP lot 3 support enabled and Boot mode select UEFI with CSM

macOS Catalina 10.15 beta 5 (19A526h)
Clover_v2.5k_r5033


MSI details:

Intel® Core™ i7 7700HQ processor / HM175
GeForce® GTX 1060 3GB GDDR5
17.3" Full HD (1920x1080), 120 Hz Refresh Rate and 5ms response time panel
Cooler Boost 4 Technology ENHANCED COOLING DESIGN FOR HIGHER POWER
32GB Crucial DDR4 2400MHz SODIMM
NVMe M.2 SSD by PCI-E Gen 3.0 / Samsung 960 EVO 1TB M.2 NVMe SSD & WD Blue 1TB 2.5" SATA SSD
HL-DT-ST GUD0N SATA Int. DVD±RW (±R DL) / DVD-RAM
Realtek RTS5129 Card Reader (SD/SDHC/SDXC)
1x USB 3.1 SuperSpeed+ Type-C reversible plug, 2x TYPE-A USB3.0 & 1x USB2.0
SHIFT technology boosts performance under controlled noise & temperature
Nahimic 2 virtual 7.1 sound / Realtek ALC898
BisonCam, NB Pro Webcam HD type (30fps@720p)
Audio Boost 2 WITH 3 dedicated headset amplifiers,isolated audio board and gold-plated audio jacks:1x Mic-in & 1x Headphone-out (SPDIF)
Dynaudio speaker system / 4x 2W Speakers & 1x 3W Subwoofer
Keyboard by Steelseries with full color backlighting / PS/2 Keyboard / Synaptics PS/2 & SMBus Multi-Touch Touchpad
Killer Shielded E2500 Gigabit Ethernet + Broadcom BCM94352Z 802.11AC
1x HDMI (HDMI 4K@30Hz) & 1x Mini DisplayPort 1.2. = HDTV/Matrix Display supports 4K output with a resolution up to 3840 x 2160
Last edited by tbrautaset on 06 Aug 2019, 13:17, edited 1 time in total.
Laptop: #1: MSI GE72VR 7RF-272NE, i7-7700HQ/HM175, HD630 1920x1080 - macOS 10.12/13 /14 / 15
Laptop: #2: Lenovo ThinkPad T460 20FMS1A00, i5-6200U/Intel SoC, HD520 1920x1080 - macOS 10.12/13 /14
Laptop: #3: Compaq Evo Notebook N800c, P4-2400M, ATI Mobility Radeon 7500 - Mac OS X 10.4.8
sanyaaahtconex
Posts: 3
Joined: 24 Feb 2019, 10:03
CPU: i7
Motherboard: dell
GPU: hd4000

Sleep issue

Post by sanyaaahtconex »

MaLd0n, thx so much you are god of osx
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 17402
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

Sleep issue

Post by MaLd0n »

tbrautaset,
DSDT.aml.zip
use Olarila clover folder for ur chipset
You do not have the required permissions to view the files attached to this post.
--Donations via PayPal [External Link Removed for Guests] :guitar

--Problems with Paypal? Check Here [Local Link Removed for Guests] :guitar

--Useful Links [Local Link Removed for Guests] :guitar

--Olarila Hackintosh Builds [Local Link Removed for Guests] :guitar

--Donated? Send me one Private Message
User avatar
tbrautaset
Posts: 13
Joined: 06 Aug 2017, 21:50
CPU: Intel® i7-7700HQ CPU @ 2.80GHz
Motherboard: MSI GE72VR 7RF ApacheP MS-179B
GPU: Intel HD Graphics 630

Sleep issue

Post by tbrautaset »

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
06 Aug 2019, 14:11
tbrautaset, DSDT.aml.zip
use Olarila clover folder for ur chipset
Hi Daniel,

Your DSDT patches that tells the kernel to ignore my laptop BIOS-supplied table are really good!

How did you make mine without me sending you an F4 dump with native files to EFI / Clover / ACPI / origin ?

Is it enough with those who are generated by "Send me" ?


Most of my hardware works fine in Catalina now :), bluetooth too thanks to [External Link Removed for Guests]


Have 1 question about brightness control :

Installed acpi support base (0.142-8) acpid (1: 2.0.28-1 + b1) on my Debian 9 partition with apt install acpid -y

Then ran acpi_listen in terminal:

fn + down arrow key = video / brightness BRTDN 00000087 00000000 K
fn + up arrow key = video / brightness BRTUP 00000086 00000000 K


Downloaded [External Link Removed for Guests] and made a patch for DSDT :

Code: [Local Link Removed for Guests]

into method label BRTN replace_content
    begin
        // Brightness Down\n
            If ((0x87 == Arg0))
            {
                Notify (\_SB.PCI0.LPCB.PS2K, 0x0405)
            }\n
        // Brightness Up\n
            If ((0x86 == Arg0))
            {
                Notify (\_SB.PCI0.LPCB.PS2K, 0x0406)
            }
    end;


My CLOVER originated from [External Link Removed for Guests]

Code: [Local Link Removed for Guests]

> ACPI
                > patched
                                DSDT.aml
                                SSDT-PNLF.aml
                                SSDT-UIAC-ALL.aml
config.plist
> Boot
                <string>dart=0 nv_disable=1 brcmfx-country=#a</string>

> Audio
                                <key>Inject</key>
                                <integer>13</integer>
                                <string>0x59168086</string>

> Graphics
                                <key>ig-platform-id</key>
                                <string>0x591b0000</string>



> drivers
                > BIOS
                                ApfsDriverLoader.efi
                                FSInject.efi
                                HFSPlus.efi
                > UEFI
                                ApfsDriverLoader.efi
                                AptioMemoryFix.efi
                                FSInject.efi
                                HFSPlus.efi
> kexts
                > Other
                                ACPIBatteryManager.kext
                                AirportBrcmFixup.kext
                                AppleALC.kext
                                AppleBacklightFixup.kext
                                AtherosE2200Ethernet.kext
                                BrcmBluetoothInjector.kext
                                BrcmFirmwareData.kext
                                BrcmPatchRAM2.kext
                                CodecCommander.kext
                                FakeSMC.kext
                                Lilu.kext
                                NoTouchID.kext
                                USBInjectAll.kext
                                VoodooI2C.kext
                                VoodooI2CHID.kext
                                VoodooPS2Controller.kext
                                WhateverGreen.kext

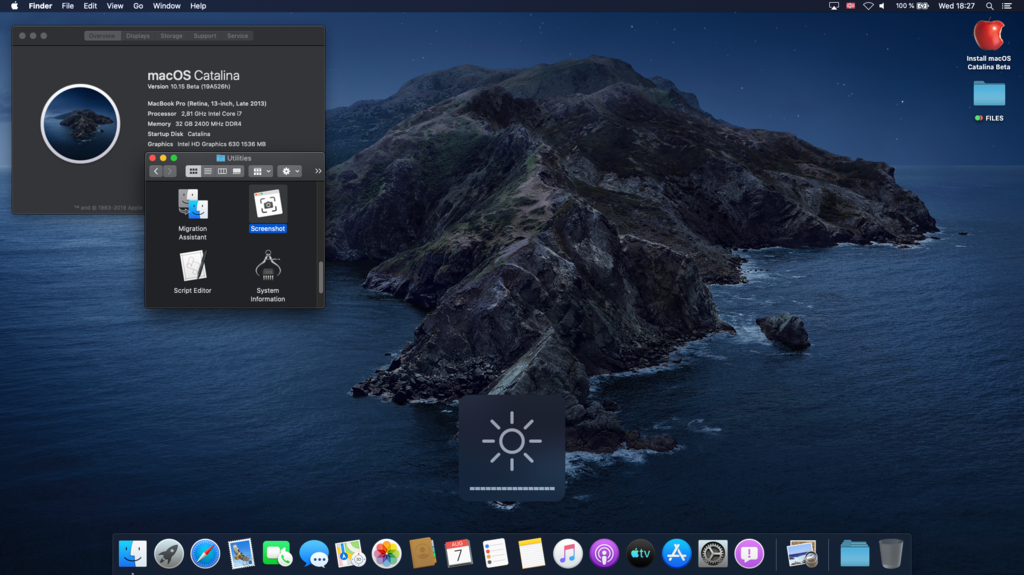

Brightness Controll works with the arrow keys as planned, but suddenly my keyboard stops working and I have to restart to correct it.

This only happens when I adjust brightness after a while with the arrow keys, what can this be ?


Have I loaded some wrong kext's or can you see if something is obviously wrong in what I've listed above ?

Laptop: #1: MSI GE72VR 7RF-272NE, i7-7700HQ/HM175, HD630 1920x1080 - macOS 10.12/13 /14 / 15
Laptop: #2: Lenovo ThinkPad T460 20FMS1A00, i5-6200U/Intel SoC, HD520 1920x1080 - macOS 10.12/13 /14
Laptop: #3: Compaq Evo Notebook N800c, P4-2400M, ATI Mobility Radeon 7500 - Mac OS X 10.4.8
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 17402
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

Sleep issue

Post by MaLd0n »

tbrautaset, brightness just use a simple pnlf patch + weg kext and apply a keys patch, don't need other injector, whatevergreen work for it now
--Donations via PayPal [External Link Removed for Guests] :guitar

--Problems with Paypal? Check Here [Local Link Removed for Guests] :guitar

--Useful Links [Local Link Removed for Guests] :guitar

--Olarila Hackintosh Builds [Local Link Removed for Guests] :guitar

--Donated? Send me one Private Message
bit128
Posts: 4
Joined: 17 Jun 2019, 06:07
CPU: Intel Core i5 5200U
Motherboard: Broadwell-U PCH L-P
GPU: Intel HD Graphics 5500

Sleep issue

Post by bit128 »

I have the same problem! My laptop is a toshiba. The model name is l50-c-137. When it is sleep the display is black, then wake after 5-10 secs, sleep again automatically and wake again but display is black. Anything solution? (mac OS Mojave 10.14.5). Please help me to solve the problem....Doante of course!!!
trenetics
Posts: 36
Joined: 28 Apr 2019, 20:33
CPU: 9th Gen Core i5 9500
Motherboard: Lenovo M920s
GPU: Intel UHD 630
Location: Denmark

Sleep issue

Post by trenetics »

MaLd0n, could you please be helpful in doing/checking my DSDT on my Lenovo M920s

Intel Q370
Intel i5-8500
UHD 630

I have been using an DSDT you made some time ago but when i updated to Catalina my sleep has stopped working, it goes to sleep but when i wake everything works in like 10 seconds then the mac just restarts like it loses power?

Here the SEND_ME
Send me Arcadia-iMac.zip
You do not have the required permissions to view the files attached to this post.
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 17402
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

Sleep issue

Post by MaLd0n »

trenetics,
DSDT.aml.zip
You do not have the required permissions to view the files attached to this post.
--Donations via PayPal [External Link Removed for Guests] :guitar

--Problems with Paypal? Check Here [Local Link Removed for Guests] :guitar

--Useful Links [Local Link Removed for Guests] :guitar

--Olarila Hackintosh Builds [Local Link Removed for Guests] :guitar

--Donated? Send me one Private Message
trenetics
Posts: 36
Joined: 28 Apr 2019, 20:33
CPU: 9th Gen Core i5 9500
Motherboard: Lenovo M920s
GPU: Intel UHD 630
Location: Denmark

Sleep issue

Post by trenetics »

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
03 Oct 2019, 18:35
trenetics, DSDT.aml.zip
MaLd0n, Thanks for the try, but it does the same thing. I even tried removing apple.powermanagement.plist and rebuild it, still no luck.

Everything is working but waking the machine from sleep. As i said upon waking it starts macOS logs me in, but then 5 seconds the system restarts like an power failure/kernel panic. Don't know what more to do! :roll:
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 17402
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

Sleep issue

Post by MaLd0n »

trenetics, use -v, debug=0x100 and keepsyms=1 and post one photo
--Donations via PayPal [External Link Removed for Guests] :guitar

--Problems with Paypal? Check Here [Local Link Removed for Guests] :guitar

--Useful Links [Local Link Removed for Guests] :guitar

--Olarila Hackintosh Builds [Local Link Removed for Guests] :guitar

--Donated? Send me one Private Message
trenetics
Posts: 36
Joined: 28 Apr 2019, 20:33
CPU: 9th Gen Core i5 9500
Motherboard: Lenovo M920s
GPU: Intel UHD 630
Location: Denmark

Sleep issue

Post by trenetics »

MaLd0n, i have added those now, in the logs i can only find this:

Code: [Local Link Removed for Guests]

019-10-04 09:43:03.745101+0200  localhost kernel[0]: PMRD: === START (ON_STATE->ON_STATE, 0x5c2) type 3, gen 1, msg 3, dcp 9:f:9
2019-10-04 09:43:03.745103+0200  localhost kernel[0]: PMRD: askChangeDown ON_STATE->ON_STATE
2019-10-04 09:43:03.745165+0200  localhost kernel[0]: PMRD: trace point 0x31 msgType 0xe0000270 detail 0x00007530
2019-10-04 09:43:03.745188+0200  localhost kernel[0]: (IOGraphicsFamily) <IOGraphicsFamily`IODisplayWrangler::setPowerState(unsigned long, IOService*)> GTrace synchronization point 777
2019-10-04 09:43:03.745221+0200  localhost kernel[0]: PMRD: prevent idle sleep list: IODisplayWrangler- (0)
2019-10-04 09:43:03.745222+0200  localhost kernel[0]: PMRD: changePowerStateTo(2)
2019-10-04 09:43:03.745223+0200  localhost kernel[0]: PMRD: changePowerStateToPriv(4)
2019-10-04 09:43:03.745309+0200  localhost kernel[0]: PMRD: power event 12 args 0x4da01af2f6928237 0x0
2019-10-04 09:43:03.745310+0200  localhost kernel[0]: PMRD: SleepWake UUID queued: 181A38FB-2975-4092-8594-D70653BCDD92
2019-10-04 09:43:03.745651+0200  localhost kernel[0]: (AppleRTC) <AppleRTC`AppleRTC::getGMTTimeOfDay()> RTC: getGMTTimeOfDay 1570174983
2019-10-04 09:43:03.745812+0200  localhost kernel[0]: (AppleRTC) <AppleRTC`AppleRTC::getGMTTimeOfDay()> RTC: getGMTTimeOfDay 1570174983
2019-10-04 09:43:03.745975+0200  localhost kernel[0]: PMRD: askChangeDownDone(0x5c2, 0) type 3, cap f->9
2019-10-04 09:43:03.745976+0200  localhost kernel[0]: PMRD: tellChangeDown ON_STATE->ON_STATE
2019-10-04 09:43:03.745977+0200  localhost kernel[0]: PMRD: tellChangeDown::userActivityAtSleep 0
2019-10-04 09:43:03.746224+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelPlane::configurePlane(FlipTransactionArgs*)> [IGFB][INFO   ] [Flip_Transaction] FB1: Flipping display with wsaa 1 flipped from 1920 x 1200 -> 1920 x 1200 on 46000000 with 801 options at stride 7680
2019-10-04 09:43:03.746225+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelPlane::configurePlane(FlipTransactionArgs*)> [IGFB][INFO   ] [Flip_Transaction] Pipe Gamma Enable
2019-10-04 09:43:03.746269+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000280 to __kernel__
2019-10-04 09:43:03.746272+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000280 to __kernel__
2019-10-04 09:43:03.746275+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000280 to __kernel__
2019-10-04 09:43:03.746279+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000280 to __kernel__
2019-10-04 09:43:03.746282+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000280 to __kernel__
2019-10-04 09:43:03.746285+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000280 to __kernel__
2019-10-04 09:43:03.746287+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000280 to __kernel__
2019-10-04 09:43:03.746289+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000280 to __kernel__
2019-10-04 09:43:03.746292+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000280 to __kernel__
2019-10-04 09:43:03.746294+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000280 to __kernel__
2019-10-04 09:43:03.746297+0200  localhost kernel[0]: PMRD: trace point 0x31 msgType 0xe0000280 detail 0x00007530
2019-10-04 09:43:03.746781+0200  localhost kernel[0]: PMRD: assertionsUser 0x41
2019-10-04 09:43:03.747820+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebufferController::hwSet10BitGamma(AppleIntelFramebuffer*, AppleIntelDisplayPath*, unsigned int, unsigned int, unsigned short*, unsigned short*, unsigned short*, bool)> [IGFB][INFO   ] [Gamma_Transaction] FB1: Blanking out the screen with  black gamma at 1843915380
2019-10-04 09:43:03.764491+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebufferController::hwSet10BitGamma(AppleIntelFramebuffer*, AppleIntelDisplayPath*, unsigned int, unsigned int, unsigned short*, unsigned short*, unsigned short*, bool)> [IGFB][INFO   ] [Gamma_Transaction] FB1: Blanking out the screen with  black gamma at 1843932051
2019-10-04 09:43:03.764974+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [Set_attribute] (attribute='wsrv', value=4)
2019-10-04 09:43:03.764975+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [WSAA] FB0 kIOWindowServerActiveAttribute = 0x4
2019-10-04 09:43:03.764976+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [WSAA] FB0: Transitioning wsaa from 1 to 4 at 1843932538
2019-10-04 09:43:03.764998+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [Set_attribute] (attribute='wsrv', value=4)
2019-10-04 09:43:03.764999+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [WSAA] FB1 kIOWindowServerActiveAttribute = 0x4
2019-10-04 09:43:03.765000+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [WSAA] FB1: Transitioning wsaa from 1 to 4 at 1843932562
2019-10-04 09:43:03.766847+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelPlane::configurePlane(FlipTransactionArgs*)> [IGFB][INFO   ] [Flip_Transaction] FB2: Flipping display with wsaa 1 flipped from 1920 x 1200 -> 1920 x 1200 on 4ea00000 with 801 options at stride 7680
2019-10-04 09:43:03.766848+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelPlane::configurePlane(FlipTransactionArgs*)> [IGFB][INFO   ] [Flip_Transaction] Pipe Gamma Enable
2019-10-04 09:43:03.800188+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebufferController::hwSet10BitGamma(AppleIntelFramebuffer*, AppleIntelDisplayPath*, unsigned int, unsigned int, unsigned short*, unsigned short*, unsigned short*, bool)> [IGFB][INFO   ] [Gamma_Transaction] FB2: Blanking out the screen with  black gamma at 1843967748
2019-10-04 09:43:03.800393+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [Set_attribute] (attribute='wsrv', value=4)
2019-10-04 09:43:03.800394+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [WSAA] FB2 kIOWindowServerActiveAttribute = 0x4
2019-10-04 09:43:03.800396+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [WSAA] FB2: Transitioning wsaa from 1 to 4 at 1843967957
2019-10-04 09:43:03.827141+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelPlane::configurePlane(FlipTransactionArgs*)> [IGFB][INFO   ] [Flip_Transaction] FB1: Flipping display with wsaa 4 flipped from 1920 x 1200 -> 1920 x 1200 on 51300000 with 5 options at stride 7680
2019-10-04 09:43:03.827148+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelPlane::configurePlane(FlipTransactionArgs*)> [IGFB][INFO   ] [Flip_Transaction] Pipe Gamma Bypass
2019-10-04 09:43:03.827148+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelPlane::configurePlane(FlipTransactionArgs*)> [IGFB][INFO   ] [Flip_Transaction] Plane Gamma Bypass
2019-10-04 09:43:03.831221+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebufferController::hwSet10BitGamma(AppleIntelFramebuffer*, AppleIntelDisplayPath*, unsigned int, unsigned int, unsigned short*, unsigned short*, unsigned short*, bool)> [IGFB][INFO   ] [Gamma_Transaction] FB1: Blanking out the screen with  black gamma at 1843998781
2019-10-04 09:43:03.841245+0200  localhost kernel[0]: (Sandbox) <Sandbox`sb_report> Sandbox: 1 duplicate report for com.apple.WebKit deny(1) mach-lookup com.apple.CoreDisplay.Notification
2019-10-04 09:43:03.841251+0200  localhost kernel[0]: (Sandbox) <Sandbox`kernel_report> Sandbox: imagent(363) deny(1) mach-lookup com.apple.tccd.system
2019-10-04 09:43:03.843144+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelPlane::configurePlane(FlipTransactionArgs*)> [IGFB][INFO   ] [Flip_Transaction] FB2: Flipping display with wsaa 4 flipped from 1920 x 1200 -> 1920 x 1200 on 4cf00000 with 5 options at stride 7680
2019-10-04 09:43:03.843152+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelPlane::configurePlane(FlipTransactionArgs*)> [IGFB][INFO   ] [Flip_Transaction] Pipe Gamma Bypass
2019-10-04 09:43:03.843153+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelPlane::configurePlane(FlipTransactionArgs*)> [IGFB][INFO   ] [Flip_Transaction] Plane Gamma Bypass
2019-10-04 09:43:03.848015+0200  localhost kernel[0]: PM response took 101 ms (363, imagent)
2019-10-04 09:43:03.850230+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebufferController::hwSet10BitGamma(AppleIntelFramebuffer*, AppleIntelDisplayPath*, unsigned int, unsigned int, unsigned short*, unsigned short*, unsigned short*, bool)> [IGFB][INFO   ] [Gamma_Transaction] FB2: Blanking out the screen with  black gamma at 1844017789
2019-10-04 09:43:04.279277+0200  localhost kernel[0]: EXC_RESOURCE -> remindd[400] exceeded mem limit: InactiveSoft 17 MB (non-fatal)
2019-10-04 09:43:04.852107+0200  localhost kernel[0]: (Sandbox) <Sandbox`sb_report> Sandbox: 1 duplicate report for imagent deny(1) mach-lookup com.apple.tccd.system
2019-10-04 09:43:04.852112+0200  localhost kernel[0]: (Sandbox) <Sandbox`kernel_report> Sandbox: com.apple.WebKit(414) deny(1) mach-lookup com.apple.CoreDisplay.Notification
2019-10-04 09:43:04.887747+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [Set_attribute] (attribute='pwrs', value=1)
2019-10-04 09:43:04.887754+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [Set_attribute] (attribute='powr', value=1)
2019-10-04 09:43:04.887756+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] FB1 oldState = 2, newState = 1 at 1845055317
2019-10-04 09:43:04.887760+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] FB1 power state transition Wake to Doze
2019-10-04 09:43:04.887762+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] lastSleep=0, firstNonSleep=0, firstWake=0
2019-10-04 09:43:04.887762+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] Saving info before sleep from FB-1
2019-10-04 09:43:04.887763+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] [Transition_sleep] Attempting sleep
2019-10-04 09:43:04.888214+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::DisableAllActiveDisplaysInTopology()> [IGFB][INFO   ] FB1 - Disable all displays associated to this Framebuffer - PathCount = 1
2019-10-04 09:43:04.888217+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::DisableAllActiveDisplaysInTopology()> [IGFB][ERROR  ] displayPath is not NULL for index i = 0. continue
2019-10-04 09:43:04.888218+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebufferController::DisableDisplay(AppleIntelFramebuffer*, AppleIntelDisplayPath*, bool, unsigned char)> [IGFB][INFO   ]  Disable display called for fb = 1 at 1845055780
2019-10-04 09:43:04.900085+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::DisableAllActiveDisplaysInTopology()> [IGFB][INFO   ] FB1 - Disable all displays done
2019-10-04 09:43:04.900101+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] [Transition_sleep] Setting DP Power state
2019-10-04 09:43:04.900102+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebufferController::SetDPPowerState(AppleIntelFramebuffer*, unsigned char, AppleIntelDisplayPath*)> [IGFB][INFO   ] FB1 Setting DP power state = 2
2019-10-04 09:43:04.901920+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] [Transition_sleep] FB1 power state transition complete. Returning at 1845069480
2019-10-04 09:43:04.921640+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [Set_attribute] (attribute='pwrs', value=1)
2019-10-04 09:43:04.921646+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::setAttribute(unsigned int, unsigned long)> [IGFB][INFO   ] [Set_attribute] (attribute='powr', value=1)
2019-10-04 09:43:04.921648+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] FB2 oldState = 2, newState = 1 at 1845089210
2019-10-04 09:43:04.921649+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] FB2 power state transition Wake to Doze
2019-10-04 09:43:04.921651+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] lastSleep=0, firstNonSleep=0, firstWake=0
2019-10-04 09:43:04.921651+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] Saving info before sleep from FB-2
2019-10-04 09:43:04.921652+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] [Transition_sleep] Attempting sleep
2019-10-04 09:43:04.922062+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::DisableAllActiveDisplaysInTopology()> [IGFB][INFO   ] FB2 - Disable all displays associated to this Framebuffer - PathCount = 1
2019-10-04 09:43:04.922065+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::DisableAllActiveDisplaysInTopology()> [IGFB][ERROR  ] displayPath is not NULL for index i = 0. continue
2019-10-04 09:43:04.922066+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebufferController::DisableDisplay(AppleIntelFramebuffer*, AppleIntelDisplayPath*, bool, unsigned char)> [IGFB][INFO   ]  Disable display called for fb = 2 at 1845089628
2019-10-04 09:43:04.934530+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::DisableAllActiveDisplaysInTopology()> [IGFB][INFO   ] FB2 - Disable all displays done
2019-10-04 09:43:04.934534+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] [Transition_sleep] Setting DP Power state
2019-10-04 09:43:04.934535+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebufferController::SetDPPowerState(AppleIntelFramebuffer*, unsigned char, AppleIntelDisplayPath*)> [IGFB][INFO   ] FB2 Setting DP power state = 2
2019-10-04 09:43:04.936034+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebuffer::doSetPowerState(unsigned int)> [IGFB][INFO   ] [Transition_sleep] FB2 power state transition complete. Returning at 1845103595
2019-10-04 09:43:04.940376+0200  localhost kernel[0]: IOConsoleUsers: time(1) 0->1570174984, lin 1, llk 1,
2019-10-04 09:43:04.940390+0200  localhost kernel[0]: IOConsoleUsers: gIOScreenLockState 3, hs 0, bs 0, now 1570174984, sm 0x0
2019-10-04 09:43:05.049043+0200  localhost kernel[0]: (IOSurface) <IOSurface`IOSurfaceRootUserClient::set_gpu_policy_dict(void*, unsigned long long)> IOSurfaceRootUserClient::set_gpu_policy_dict prop: <private>
2019-10-04 09:43:05.076527+0200  localhost kernel[0]: (AppleKeyStore) <AppleKeyStore`ipc_device_state_transition> AppleKeyStore::ipc_device_state_transition: Device Lock call(-501): lockstate=0, locknow=0, 127
2019-10-04 09:43:05.087475+0200  localhost kernel[0]: (AppleCredentialManager) <AppleCredentialManager`CreateCredentialSet> ACM: createCredentialSet: Credential set created, CS[113]/2/0/222.
2019-10-04 09:43:05.087884+0200  localhost kernel[0]: (AppleCredentialManager) <AppleCredentialManager`verifyPolicy> ACM: verifyPolicy: Verifying policy DeviceOwnerAuthenticationWithBiometrics, checkKeybagUUID = No, CS[113].
2019-10-04 09:43:05.087891+0200  localhost kernel[0]: (AppleCredentialManager) <AppleCredentialManager`verifyPolicy> ACM: verifyPolicy: Policy satisfied = No, preflight = Yes, CS[113].
2019-10-04 09:43:05.088628+0200  localhost kernel[0]: (AppleCredentialManager) <AppleCredentialManager`deleteCredentialSet> ACM: deleteCredentialSet: Deleting credential set, CS[113].
2019-10-04 09:43:05.183140+0200  localhost kernel[0]: (AppleKeyStore) <AppleKeyStore`AppleKeyStoreUserClient::externalMethod(unsigned int, IOExternalMethodArguments*, IOExternalMethodDispatch*, OSObject*, void*)> AppleKeyStore: operation failed (pid: 93 sel: 75 ret: e00002ce '-536870194', -1, 100000)
2019-10-04 09:43:06.448582+0200  localhost kernel[0]: (AppleIntelCFLGraphicsFramebuffer) <AppleIntelCFLGraphicsFramebuffer`AppleIntelFramebufferController::invokeShortPulseHandler(unsigned int)> [IGFB][INFO   ] [Short_Pluse] FB2 port = 3 at 1846616138
2019-10-04 09:43:06.751830+0200  localhost kernel[0]: PMRD: setAggressiveness(0) kPMMinutesToSleep = 0
2019-10-04 09:43:07.741461+0200  localhost kernel[0]: (apfs) <apfs`log_debug> handle_get_purgeable_stats:8512: total purgeable file count: 0 total purgeable size: 0
2019-10-04 09:43:07.742722+0200  localhost kernel[0]: (apfs) <apfs`log_debug> handle_get_purgeable_stats:8512: total purgeable file count: 0 total purgeable size: 0
2019-10-04 09:43:07.745980+0200  localhost kernel[0]: (apfs) <apfs`log_debug> handle_get_purgeable_stats:8512: total purgeable file count: 3513 total purgeable size: 6120407040
2019-10-04 09:43:07.765837+0200  localhost kernel[0]: (apfs) <apfs`log_debug> handle_get_purgeable_stats:8512: total purgeable file count: 0 total purgeable size: 0
2019-10-04 09:43:09.818787+0200  localhost kernel[0]: (AppleKeyStore) <AppleKeyStore`AppleKeyStoreUserClient::externalMethod(unsigned int, IOExternalMethodArguments*, IOExternalMethodDispatch*, OSObject*, void*)> AppleKeyStore: operation failed (pid: 323 sel: 26 ret: e00002e2 '-536870174', 501, 100013)
2019-10-04 09:43:15.078651+0200  localhost kernel[0]: (AppleKeyStore) <AppleKeyStore`change_lock_state_with_opts> AppleKeyStore::change_lock_state_with_opts: telling kernel handle -501 is locked.
2019-10-04 09:43:15.078674+0200  localhost kernel[0]: (AppleKeyStore) <AppleKeyStore`AppleKeyStore::notify_change_device_state(int, unsigned char, unsigned char)> AppleKeyStore: Sending lock change 1 for handle -501 value 0
2019-10-04 09:43:15.078718+0200  localhost kernel[0]: (AppleKeyStore) <AppleKeyStore`ipc_device_state_transition> AppleKeyStore::ipc_device_state_transition: Device Locked(-501): lockstate=1
2019-10-04 09:43:15.181378+0200  localhost kernel[0]: (AppleKeyStore) <AppleKeyStore`AppleKeyStoreUserClient::externalMethod(unsigned int, IOExternalMethodArguments*, IOExternalMethodDispatch*, OSObject*, void*)> AppleKeyStore: operation failed (pid: 93 sel: 75 ret: e00002ce '-536870194', -1, 100000)
2019-10-04 09:43:18.752596+0200  localhost kernel[0]: PMRD: assertionsUser 0x40
2019-10-04 09:43:33.747350+0200  localhost kernel[0]: PM notification timeout (pid 531, CleanMyDrive 2)
2019-10-04 09:43:33.747355+0200  localhost kernel[0]: PM notification timeout (pid 531, CleanMyDrive 2)
2019-10-04 09:43:33.747423+0200  localhost kernel[0]: PMRD: tellChangeDown ON_STATE->ON_STATE
2019-10-04 09:43:33.747424+0200  localhost kernel[0]: PMRD: tellChangeDown::userActivityAtSleep 0
2019-10-04 09:43:33.747433+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to __kernel__
2019-10-04 09:43:33.747434+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to __kernel__
2019-10-04 09:43:33.747435+0200  localhost kernel[0]: PMRD: sysPowerDownHandler message kIOMessageSystemCapabilityChange
2019-10-04 09:43:33.747436+0200  localhost kernel[0]: PMRD: sysPowerDownHandler cap f -> 9 (flags 1)
2019-10-04 09:43:33.747438+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleACPIPlatform
2019-10-04 09:43:33.747439+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOPCIFamily
2019-10-04 09:43:33.747440+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOStorageFamily
2019-10-04 09:43:33.747442+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOHIDFamily
2019-10-04 09:43:33.747444+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOStorageFamily
2019-10-04 09:43:33.747445+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOStorageFamily
2019-10-04 09:43:33.747446+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IONetworkingFamily
2019-10-04 09:43:33.747447+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleSMC
2019-10-04 09:43:33.747449+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IO80211Family
2019-10-04 09:43:33.747455+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AirPort.BrcmNIC
2019-10-04 09:43:33.747480+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleSMCLMU
2019-10-04 09:43:33.747482+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IO80211Family
2019-10-04 09:43:33.747484+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.X86PlatformPlugin
2019-10-04 09:43:33.747487+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOGraphicsFamily
2019-10-04 09:43:33.747489+0200  localhost kernel[0]: (IOGraphicsFamily) <IOGraphicsFamily`IOFramebuffer::systemPowerChange(void*, void*, unsigned int, IOService*, void*, unsigned long)> GTrace synchronization point 7b3
2019-10-04 09:43:33.747493+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AGPM
2019-10-04 09:43:33.747507+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleGraphicsDevicePolicy
2019-10-04 09:43:33.747511+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.IOBluetoothHIDDriver
2019-10-04 09:43:33.747513+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleTopCaseHIDEventDriver
2019-10-04 09:43:33.747514+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleTopCaseHIDEventDriver
2019-10-04 09:43:33.747516+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleActuatorDriver
2019-10-04 09:43:33.747532+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.IOBluetoothHIDDriver
2019-10-04 09:43:33.747534+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleTopCaseHIDEventDriver
2019-10-04 09:43:33.747567+0200  localhost kernel[0]: PMRD: + plimit IODisplayWrangler 0x4da01af2eccd14b7
2019-10-04 09:43:33.747568+0200  localhost kernel[0]: PMRD: > plimit IODisplayWrangler 0x4da01af2eccd14b7 (4->1, 0x109)
2019-10-04 09:43:33.747635+0200  localhost kernel[0]: PMRD: > plimit IODisplayWrangler 0x4da01af2eccd14b7 (4->1, 0x111)
2019-10-04 09:43:33.747864+0200  localhost kernel[0]: PMRD: + plimit AppleHDAHDMI_DPDriver 0x4da01af2eeec5697
2019-10-04 09:43:33.747865+0200  localhost kernel[0]: PMRD: > plimit AppleHDAHDMI_DPDriver 0x4da01af2eeec5697 (1->0, 0x109)
2019-10-04 09:43:33.747871+0200  localhost kernel[0]: PMRD: + plimit AppleHDADriver 0x4da01af2edba2f97
2019-10-04 09:43:33.747872+0200  localhost kernel[0]: PMRD: > plimit AppleHDADriver 0x4da01af2edba2f97 (1->0, 0x109)
2019-10-04 09:43:33.747921+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::protectedSetPowerState(unsigned long, IOService*)> + IOAudioDevice[<private>]::protectedSetPowerState(0, <private>)
2019-10-04 09:43:33.747923+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::initiatePowerStateChange(unsigned int*)> + IOAudioDevice[<private>]::initiatePowerStateChange(<private>) - current = 1 - pending = 0
2019-10-04 09:43:33.747933+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::protectedCompletePowerStateChange()> + IOAudioDevice[<private>]::protectedCompletePowerStateChange() - current = 1 - pending = 0
2019-10-04 09:43:33.747935+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::protectedCompletePowerStateChange()> - IOAudioDevice[<private>]::protectedCompletePowerStateChange() - current = 0 - pending = 0 returns 0x0
2019-10-04 09:43:33.747936+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::initiatePowerStateChange(unsigned int*)> - IOAudioDevice[<private>]::initiatePowerStateChange(<private>) - current = 0 - pending = 0 returns 0x0
2019-10-04 09:43:33.747951+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::protectedSetPowerState(unsigned long, IOService*)> - IOAudioDevice[<private>]::protectedSetPowerState(0, <private>) returns 0x0
2019-10-04 09:43:33.748006+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::protectedSetPowerState(unsigned long, IOService*)> + IOAudioDevice[<private>]::protectedSetPowerState(0, <private>)
2019-10-04 09:43:33.748008+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::initiatePowerStateChange(unsigned int*)> + IOAudioDevice[<private>]::initiatePowerStateChange(<private>) - current = 2 - pending = 0
2019-10-04 09:43:34.559219+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::protectedCompletePowerStateChange()> + IOAudioDevice[<private>]::protectedCompletePowerStateChange() - current = 2 - pending = 0
2019-10-04 09:43:34.559226+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::protectedCompletePowerStateChange()> - IOAudioDevice[<private>]::protectedCompletePowerStateChange() - current = 0 - pending = 0 returns 0x0
2019-10-04 09:43:34.559232+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::protectedCompletePowerStateChange()> + IOAudioDevice[<private>]::protectedCompletePowerStateChange() - current = 0 - pending = 0
2019-10-04 09:43:34.559233+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::protectedCompletePowerStateChange()> - IOAudioDevice[<private>]::protectedCompletePowerStateChange() - current = 0 - pending = 0 returns 0x0
2019-10-04 09:43:34.559235+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::initiatePowerStateChange(unsigned int*)> - IOAudioDevice[<private>]::initiatePowerStateChange(<private>) - current = 0 - pending = 0 returns 0x0
2019-10-04 09:43:34.559236+0200  localhost kernel[0]: (IOAudioFamily) <IOAudioFamily`IOAudioDevice::protectedSetPowerState(unsigned long, IOService*)> - IOAudioDevice[<private>]::protectedSetPowerState(0, <private>) returns 0x0
2019-10-04 09:43:34.559300+0200  localhost kernel[0]: PMRD: > plimit AppleHDAHDMI_DPDriver 0x4da01af2eeec5697 (1->0, 0x111)
2019-10-04 09:43:34.559304+0200  localhost kernel[0]: PMRD: > plimit AppleHDADriver 0x4da01af2edba2f97 (1->0, 0x111)
2019-10-04 09:43:34.559372+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to __kernel__
2019-10-04 09:43:34.559374+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to __kernel__
2019-10-04 09:43:34.559375+0200  localhost kernel[0]: PMRD: sysPowerDownHandler message kIOMessageSystemCapabilityChange
2019-10-04 09:43:34.559376+0200  localhost kernel[0]: PMRD: sysPowerDownHandler cap f -> 9 (flags 2)
2019-10-04 09:43:34.559377+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleACPIPlatform
2019-10-04 09:43:34.559398+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOPCIFamily
2019-10-04 09:43:34.559400+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOStorageFamily
2019-10-04 09:43:34.559401+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOHIDFamily
2019-10-04 09:43:34.559403+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOStorageFamily
2019-10-04 09:43:34.559404+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IOStorageFamily
2019-10-04 09:43:34.559406+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IONetworkingFamily
2019-10-04 09:43:34.559407+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleSMC
2019-10-04 09:43:34.559409+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IO80211Family
2019-10-04 09:43:34.559424+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AirPort.BrcmNIC
2019-10-04 09:43:34.559434+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.driver.AppleSMCLMU
2019-10-04 09:43:34.559436+0200  localhost kernel[0]: PMRD: trace point 0x31 msg 0xe0000340 to com.apple.iokit.IO80211Family
2019-10-04 09:45:32.000051+0200  localhost kernel[0]: mem_actual: 0x1000000000
 legacy sane_size: 0xff0000000
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 17402
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

Sleep issue

Post by MaLd0n »

trenetics, use a native real time clock device into low pin count, check if work
--Donations via PayPal [External Link Removed for Guests] :guitar

--Problems with Paypal? Check Here [Local Link Removed for Guests] :guitar

--Useful Links [Local Link Removed for Guests] :guitar

--Olarila Hackintosh Builds [Local Link Removed for Guests] :guitar

--Donated? Send me one Private Message
trenetics
Posts: 36
Joined: 28 Apr 2019, 20:33
CPU: 9th Gen Core i5 9500
Motherboard: Lenovo M920s
GPU: Intel UHD 630
Location: Denmark

Sleep issue

Post by trenetics »

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
04 Oct 2019, 14:17
trenetics, use a native real time clock device into low pin count, check if work
MaLd0n, I don't understand?
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 17402
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

Sleep issue

Post by MaLd0n »

trenetics, check in ur untouched DSDT a RTC device
--Donations via PayPal [External Link Removed for Guests] :guitar

--Problems with Paypal? Check Here [Local Link Removed for Guests] :guitar

--Useful Links [Local Link Removed for Guests] :guitar

--Olarila Hackintosh Builds [Local Link Removed for Guests] :guitar

--Donated? Send me one Private Message
paulomed
Posts: 8
Joined: 07 Mar 2013, 19:42
CPU: Intel Core i7 - 2600
Motherboard: MSI h61m-E22 (g3)
GPU: HD 5450

Sleep issue

Post by paulomed »

I have the same problem =/
MaLd0n, Can you help me?
My installation goes very well but when I return from sleep mode I have kernel panic. Every time I need to restart.
report.zip
Specs
i7 2600k
16GB
GA-B75M-D3H
Rx 580
You do not have the required permissions to view the files attached to this post.
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 17402
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

Sleep issue

Post by MaLd0n »

paulomed, primeiramente use a pasta correta, serie 7

gere uma ssdt pro gerenciamento de energia
[Local Link Removed for Guests]
--Donations via PayPal [External Link Removed for Guests] :guitar

--Problems with Paypal? Check Here [Local Link Removed for Guests] :guitar

--Useful Links [Local Link Removed for Guests] :guitar

--Olarila Hackintosh Builds [Local Link Removed for Guests] :guitar

--Donated? Send me one Private Message
paulomed
Posts: 8
Joined: 07 Mar 2013, 19:42
CPU: Intel Core i7 - 2600
Motherboard: MSI h61m-E22 (g3)
GPU: HD 5450

Sleep issue

Post by paulomed »

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
10 Oct 2019, 01:19
paulomed, primeiramente use a pasta correta, serie 7

gere uma ssdt pro gerenciamento de energia
[Local Link Removed for Guests]
Eu sempre gero o SSDT por meio deste tutorial, está ativo e mesmo assim segue dando kernel panic.
Sobre a pasta serie 7 não entendi do que se refere. Obrigado!
nicolasalves
Posts: 4
Joined: 16 May 2013, 03:56
CPU: Core i7 7700HQ
Motherboard: Samsung
GPU: Intel UHD 630
Location: Pará, Brazil

Sleep issue

Post by nicolasalves »

MaLd0n, aproveitando esse post gostaria de uma ajuda no sleep com o Catalina. Não consegui ativar de jeito nenhum no meu notebook, já tentei de tudo. Pode me dar uma luz? Acontece que ao entrar em repouso, passa uns 2 segundos, ele liga novamente com tela preta e depois na tela de login.

Segue o meu send me
Grato
You do not have the required permissions to view the files attached to this post.
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 17402
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

Sleep issue

Post by MaLd0n »

nicolasalves,
DSDT.aml.zip
a sua config não está das piores, mas não está correta, veja a pasta Olarila pra notebooks skylake+, veja os renames
You do not have the required permissions to view the files attached to this post.
--Donations via PayPal [External Link Removed for Guests] :guitar

--Problems with Paypal? Check Here [Local Link Removed for Guests] :guitar

--Useful Links [Local Link Removed for Guests] :guitar

--Olarila Hackintosh Builds [Local Link Removed for Guests] :guitar

--Donated? Send me one Private Message
Post Reply

Return to “Catalina (10.15)”
