[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

piyushrawal
Posts: 7
Joined: 23 Apr 2019, 20:25
CPU: i7-7700
Motherboard: MSI H270-A Pro
GPU: RX 580

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by piyushrawal » 05 Jun 2019, 00:05

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
04 Jun 2019, 23:38
piyushrawal, DSDT.aml.zip
now, just change One to Zero if u need disable
MaLd0n, am I to use it alongside SSDT-4-xh_rvp08.aml or just the DSDT?
I am sorry for being a total noob.
And thanks a ton for your help. :)
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 14588
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by MaLd0n » 05 Jun 2019, 00:37

piyushrawal, use both files ssdt and dsdt, only it with my EFI folder
--Donations via PayPal [External Link Removed for Guests] :guitar

--Donated? Send me one Private Message
piyushrawal
Posts: 7
Joined: 23 Apr 2019, 20:25
CPU: i7-7700
Motherboard: MSI H270-A Pro
GPU: RX 580

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by piyushrawal » 05 Jun 2019, 10:18

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
05 Jun 2019, 00:37
piyushrawal, use both files ssdt and dsdt, only it with my EFI folder
Got it! Thanks a lot. :crazy:
User avatar
onemanosx
Olarila Staff
Olarila Staff
Posts: 1355
Joined: 03 Feb 2018, 05:42
CPU: Intel i7-6700HQ HM170 Chipset
Motherboard: Acer Aspire VN7-592G Laptop
GPU: Intel HD 530 + Nvidia GTX 960M

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by onemanosx » 14 Jun 2019, 13:39

For laptops (at least for my skylake laptop), it is also worth to know that native _UPC or _PLD is within DSDT itself. Similarly, like how Maldon had described all we need to do is replace zero to one and define usb type in the scope of UUPC and UPLD as per my example.

Hope this helps for some of us.

[External Link Removed for Guests]
[External Link Removed for Guests]

Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset
Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina)

MSI B360 Gaming Arctic
Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina)
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 14588
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by MaLd0n » 14 Jun 2019, 13:43

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
14 Jun 2019, 13:39
_UPC or _PLD is within DSDT
:guitar
--Donations via PayPal [External Link Removed for Guests] :guitar

--Donated? Send me one Private Message
Canela
Donator
Donator
Posts: 32
Joined: 20 Mar 2019, 19:28
CPU: i7-8700
Motherboard: GA Z390 M GAMING
GPU: RX 590 8GB

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by Canela » 15 Jun 2019, 23:48

Hi MaLd0n, is your edited SSDT for Z390 M Gaming? Can I use it?
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 14588
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by MaLd0n » 15 Jun 2019, 23:55

Canela,
SSDT-6-A M I.aml.zip
You do not have the required permissions to view the files attached to this post.
--Donations via PayPal [External Link Removed for Guests] :guitar

--Donated? Send me one Private Message
Canela
Donator
Donator
Posts: 32
Joined: 20 Mar 2019, 19:28
CPU: i7-8700
Motherboard: GA Z390 M GAMING
GPU: RX 590 8GB

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by Canela » 16 Jun 2019, 11:23

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
15 Jun 2019, 23:55
Canela, SSDT-6-A M I.aml.zip
Thanks! ;)
User avatar
telepati
Posts: 84
Joined: 03 Mar 2012, 01:21
CPU: i9 9900K
Motherboard: GigaByte Z390 M Gaming
GPU: Asus ROG RX 560

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by telepati » 16 Jun 2019, 15:46

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
15 Jun 2019, 23:55
Canela, SSDT-6-A M I.aml.zip
Can I also use this? Our motherboard is the same. Should I make any changes? If I can use this, can or should I remove these kexts and SSDT;

SSDT-UIAC.aml
XHCI-unsupported.kext
USBInjectAll.kext
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 14588
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by MaLd0n » 16 Jun 2019, 17:02

telepati, yes, use ssdt with usb patch limit port for raise one port more, this mobo have a 16 usb ports
--Donations via PayPal [External Link Removed for Guests] :guitar

--Donated? Send me one Private Message
Canela
Donator
Donator
Posts: 32
Joined: 20 Mar 2019, 19:28
CPU: i7-8700
Motherboard: GA Z390 M GAMING
GPU: RX 590 8GB

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by Canela » 16 Jun 2019, 18:08

MaLd0n, following your guide I have edited your SSDT to change some ports. I do not use the HS09, so I have a total of 15 ports ... does that mean I can erase the USB Port Limit Patches?
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 14588
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by MaLd0n » 16 Jun 2019, 20:55

Canela, if u use only 15 ports, yes. Don't need usb limit port
--Donations via PayPal [External Link Removed for Guests] :guitar

--Donated? Send me one Private Message
Canela
Donator
Donator
Posts: 32
Joined: 20 Mar 2019, 19:28
CPU: i7-8700
Motherboard: GA Z390 M GAMING
GPU: RX 590 8GB

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by Canela » 16 Jun 2019, 21:06

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
16 Jun 2019, 20:55
Canela, if u use only 15 ports, yes. Don't need usb limit port
Perfect thanks! :frantics
User avatar
telepati
Posts: 84
Joined: 03 Mar 2012, 01:21
CPU: i9 9900K
Motherboard: GigaByte Z390 M Gaming
GPU: Asus ROG RX 560

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by telepati » 19 Jun 2019, 16:42

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
16 Jun 2019, 17:02
telepati, yes, use ssdt with usb patch limit port for raise one port more, this mobo have a 16 usb ports
Internal USB 2.0 didn't work. No Bluetooth hardware anymore.

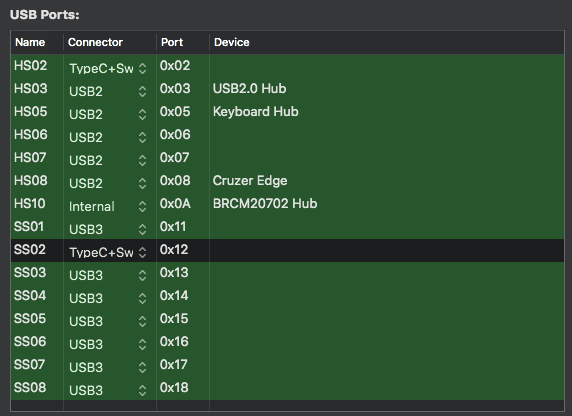

These are my all 15 ports;
You do not have the required permissions to view the files attached to this post.
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 14588
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by MaLd0n » 19 Jun 2019, 23:43

telepati, u need change things, i have many devices usb like bt
--Donations via PayPal [External Link Removed for Guests] :guitar

--Donated? Send me one Private Message
User avatar
telepati
Posts: 84
Joined: 03 Mar 2012, 01:21
CPU: i9 9900K
Motherboard: GigaByte Z390 M Gaming
GPU: Asus ROG RX 560

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by telepati » 20 Jun 2019, 12:41

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
19 Jun 2019, 23:43
telepati, u need change things, i have many devices usb like bt

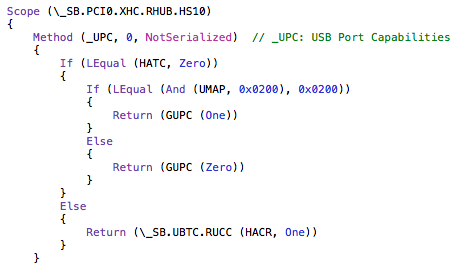

Thanks to the warning. I used 15 ports and removed patch limit. My HS10 is the Internal and using Bluetooth connection. Just like you said on the first page I use GUPC (One) and enabled it. But still doesn't work, still says no Bluetooth hardware. I am totally losing my Bluetooth. Could you please tell me what am I doing wrong?

You do not have the required permissions to view the files attached to this post.
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 14588
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by MaLd0n » 21 Jun 2019, 03:11

telepati, u try other like 0x03...
--Donations via PayPal [External Link Removed for Guests] :guitar

--Donated? Send me one Private Message
User avatar
telepati
Posts: 84
Joined: 03 Mar 2012, 01:21
CPU: i9 9900K
Motherboard: GigaByte Z390 M Gaming
GPU: Asus ROG RX 560

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by telepati » 21 Jun 2019, 10:24

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
21 Jun 2019, 03:11
telepati, u try other like 0x03...

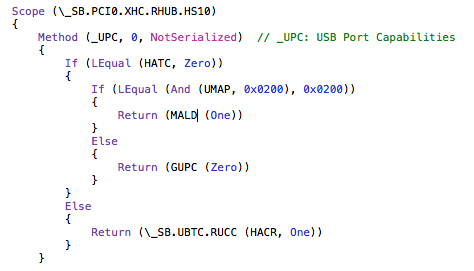

What do you mean by that? Is MALD instead of GUPC for internal HS10?

Edit:

I tried all connectors made all HSxx to MALD, TUPC, GUPC but nothing changes no internal USB and No Bluetooth connection. I think no native USB for me.

You do not have the required permissions to view the files attached to this post.
User avatar
MaLd0n
Site Admin
Site Admin
Posts: 14588
Joined: 05 Dec 2010, 19:35
CPU: i9-9900K
Motherboard: GA Z390 M GAMING
GPU: RX 590 8 GB
Location: Rio de Janeiro, Brazil
Contact:

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by MaLd0n » 21 Jun 2019, 19:08

telepati, test port with one device usb2 or usb 3
--Donations via PayPal [External Link Removed for Guests] :guitar

--Donated? Send me one Private Message
User avatar
telepati
Posts: 84
Joined: 03 Mar 2012, 01:21
CPU: i9 9900K
Motherboard: GigaByte Z390 M Gaming
GPU: Asus ROG RX 560

[Guide] Native USB Fix - No Injector/Kext Required - SkyLake+

Post by telepati » 21 Jun 2019, 20:57

[Local Link Removed for Guests] wrote: [Local Link Removed for Guests]
21 Jun 2019, 19:08
telepati, test port with one device usb2 or usb 3
I did but nothing changed. I just gave up. This will not work for me :wallbash
